Festo Solenoid valve VUVG MHJ-LF,MHJ-MF,MHJ-HF

MHJ C the new dimension i
Very short switching times:
Know-how generates
a perfect match for your system:
sensor technology
< 1 ms
innovation
 Flow rate
Ultra fast, ultra long service life,
Flow rates of 50 to 150 litres
These revolutionary characteri-
 Valve layout
ultra reproducible: type MHJ9
per minute
stics are the result of continu-
 Manifold design
and MHJ10 blowing valves
Outstanding repetition
ous testing and ceaseless
 Pneumatic connections
have been created for a new
accuracy of less than 0.1 ms
optimisation of an established
 Electrical actuation
dimension in sorting technology
Unbeatably long service life of
product range.
 Output/nozzle design
thanks to extremely refined
more than 5 billion switching
characteristics:
cycles!
Custom-made for you
Or just tell us what your
Choose from the following
requirements are and our
features to open up the range of
experts will recommend the
possible applications and create
best possible solution.
Technical dataMHJ-LFMHJ-MFMHJ-HF
Standard nominal flow rate 50 l/min100 l/min150 l/min
MediumFiltered (40 m), unlubricated compressed air
Type2/2-way poppet valve, directly actuated, pneumatic return
Operating pressure range0.5 ... 6 bar (higher on request)
Medium/ambient temperature -5 ... +60 aC (lower on request
WidthMHJ9: 9 mm/MHJ10: 10 mm

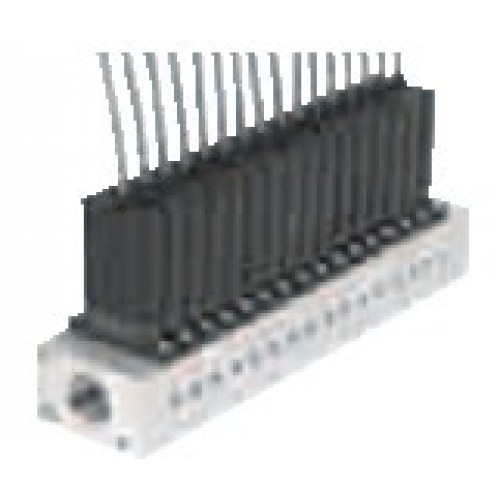

°Valve manifold with MHJ10 valves
Grid dimension MHJ9: 9.5 mm/MHJ10: 10.5 mm
Individual valve weight MHJ9: 35g/MHJ10: 44g
Sub-base valve weight MHJ9: 24g/MHJ10: 34g
Dimensions
Individual valve (LxWxH)MHJ9: 51 x 9 x 31 mm/MHJ10: 67.5 x 10 x 31 mm
2/2-way valve MHJ10
Sub-base valveMHJ9: 32 x 9 x 31 mm/MHJ10: 53.5 x 10 x 46 mm
ConnectionMHJ9: KMH plug/MHJ10: 3-pin cable
Operating voltage24 V DC for MHJ10/2 ... 48 V DC for MHJ9
(with cable current regulator)
ProtectionIP65 for cable version/IP40 for plug version
Manual overrideNone
Repetition accuracy 0.1 ms
Service life5 billion (2 billion for HF)
°Valve manifold with MHJ9 valves
Power consumption
(high current/holding current) 7 W/2 W7 W/2 Wnn
Switching time at 4 bar and 24 V
(on/off) 0.8 ms/0.5 ms0.8 ms/0.4 ms1.0 ms/0.8 ms
Pneumatic connection, individual valveQS4QS4QS6
2/2-way valve MHJ9
