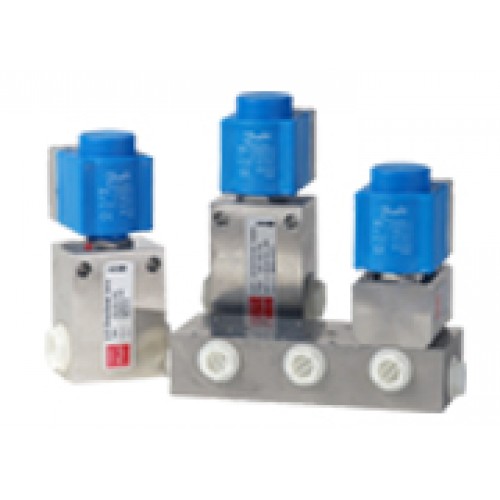

Danfoss high pressure pumps valve VDH

• 3 inline valve types with flow ranges up to 30, 60 and 120 l/min / 8, 16 and 32 GPM
• Pressures up to 140 bar / 2000 PSI continuous - peak up to 200 bar / 2900 PSI
• Fluid: clean tap water (10µ absolute filtration, ß-value > 5000)
• Fluid and ambient temperature 3° – 50° C / 37°-122° F  (with antifreeze -30° – 50 ° C  /  -22° – 122° F)
• Valve design: poppet type – leakage free from pressure side
• Housing in stainless steel AISI 304
• NC and NO versions
• Manifold for Cetop3 versions for 1 to 4 functions
• Big range of coils available
• Designed for a high number of actuations
• BSP 3/8” and 1/2” port sizes

Details on 4/3-way directional valve in Cetop 3 or Cetop 5-flange mounting versions:
Function: ON/OFF pilot operated 4 poppet valve principles, electrically activated by 4 coils

• 2 valve ranges for  flow up to 30 or 60 l/min / 8 and 16 GPM
• Pressure max. 140 bar / 2000 PSI
• Fluid: clean tap water (10µ absolute filtration, ß-value > 5000)
• Fluid and ambient temperature 3° – 50° C / 37° - 122° F (with antifreeze -30° – 50° C / -22° - 122° F)
• Housing in stainless steel AISI 304 or AISI 316
• NC and NO combination versions for various applications
• Manifold for Cetop3 and Cetop5 versions for 1 to 4 valves functions
• Big range of coils available
• Designed for a high number of actuations
