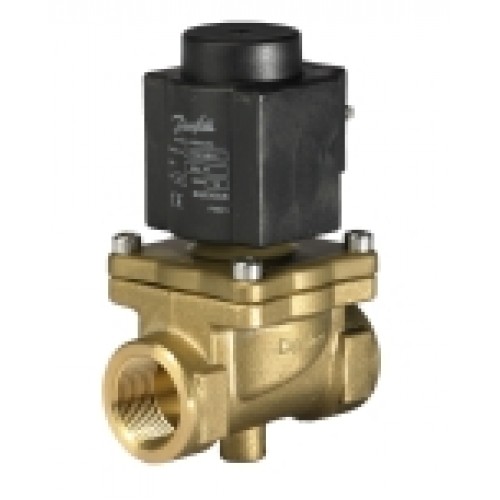

Danfoss solenoid valve EV245B, Servo piston operated 2/2-way solenoid valves for steam
EV245B, Servo piston operated 2/2-way solenoid valves for steam
The servo-operated piston design with PTFE seal on the main orifice and steel valve plate in the armature secures a reliable function and long life in steam applications.
Versions:
EV245B used with BQ coil, ac voltage up to 185ºC
EV245B used with BN coil, dc voltage up to 160ºC
EV245B used with BB coil, ac voltage up to 160ºC or dc voltage up to 140ºC
- 2/2-way
- Specifically designed for steam applications, 160ºC or 185ºC
- Servo piston operated
- DN15 – DN25
- Ambient temperature: +40ºC
- G1/2 to G3/4
- Brass valve body
- NC (normally closed)
| Item no. | Item no. | Type | Operation | Function | Connection | Orifice size | seal mat. | Diff. Pressure bar | Body mat. | Kv value | |
|
EV245B | Servo-operated (piston) | N C | G 1/2 | 15,00 mm | PTFE | -10 - 185 °C | 0,1 - 10 bar | Brass | 5,000 m3/h | |
|
EV245B | Servo-operated (piston) | N C | G 3/4 | 20,00 mm | PTFE | -10 - 185 °C | 0,1 - 10 bar | Brass | 6,000 m3/h |
