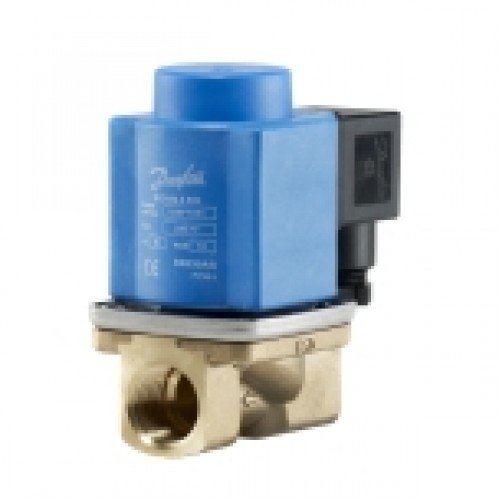

Danfoss solenoid valve EV251B, Assisted lift operated 2/2-way solenoid valves
EV251B, Assisted lift operated 2/2-way solenoid valves
EV251B with assisted lift can operate from zero and up to 10 bar differential pressure.
This 2/2-way valve programme is especially suitable for applications such as closed systems with low and fluctuating pressure conditions or open systems with differential pressure down to 0 bar. The valve includes coil and plug.
This 2/2-way valve programme is especially suitable for applications such as closed systems with low and fluctuating pressure conditions or open systems with differential pressure down to 0 bar. The valve includes coil and plug.
- For water, oil, compressed air and similar neutral media
- Kv value: Up to 6 m3/h
- Differential pressure: Up to 10 bar
- Viscosity: Up to 50 cSt
- Ambient temperature: Up to +80 °C
- Media temperature from -10 to +90 °C
- Coil enclosure: IP 65
- Thread connections: From G 3/8 to G 1
| Item no. | Type | Operation | Function | Connection | Orifice size | seal mat. | Diff. Pressure bar | Body mat. | Kv value | ||
|
EV251B | Assisted lift operated | N C | G 3/8 | 10,00 mm | NBR | 0 - 10 bar | Brass | 1,500 m3/h | BB 24,00 V d.c. | |
|
EV251B | Assisted lift operated | N C | G 3/8 | 10,00 mm | NBR | 0 - 10 bar | Brass | 1,500 m3/h | BB 24 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 3/8 | 10,00 mm | NBR | 0 - 10 bar | Brass | 1,500 m3/h | BB 230 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 1/2 | 12,00 mm | NBR | 0 - 10 bar | Brass | 2,500 m3/h | BB 24,00 V d.c. | |
|
EV251B | Assisted lift operated | N C | G 1/2 | 12,00 mm | NBR | 0 - 10 bar | Brass | 2,500 m3/h | BB 24 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 1/2 | 12,00 mm | NBR | 0 - 10 bar | Brass | 2,500 m3/h | BB 230 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 3/4 | 18,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 24,00 V d.c. | |
|
EV251B | Assisted lift operated | N C | G 3/4 | 18,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 24 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 3/4 | 18,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 230 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 1 | 22,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 24,00 V d.c. | |
|
EV251B | Assisted lift operated | N C | G 1 | 22,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 24 V a.c. 50 Hz | |
|
EV251B | Assisted lift operated | N C | G 1 | 22,00 mm | NBR | 0 - 10 bar | Brass | 3,500 m3/h | BB 230 V a.c. 50 Hz |
