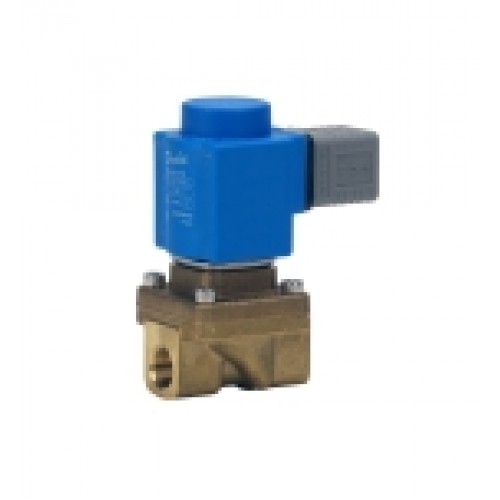

Danfoss solenoid valve EV250B, Assisted lift operated 2/2-way solenoid valves

Danfoss solenoid valve EV250B, Assisted lift operated 2/2-way solenoid valves

   EV250B, Assisted lift operated 2/2-way solenoid valves

EV250B with assisted lift can operate from zero and up to 10 bar differential pressure.
This 2/2-way valve program is especially to use in closed circuits with low differential pressure, but demanding moderate flow rates. Valve body in dezincification resistant brass for ensuring a long life even in connection with aggressive steam media. EV250B is compatible with the broad Danfoss coil program with enclosures from IP00 up to IP67. Medium temperatures up to 140 °C (low pressure steam).
Item no. Type Operation Function Connection Orifice size seal mat. Diff. Pressure bar Body mat. Kv value
032U1271
EV250B Assisted lift operated N C G 1/2 12,00 mm EPDM 0 - 10 bar Brass 2,500 m3/h -
032U157102
EV250B Assisted lift operated N C G 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h BB 24,00 V d.c.
032U157116
EV250B Assisted lift operated N C G 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h BB 24 V a.c. 50 Hz
032U157131
EV250B Assisted lift operated N C G 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h BB 230 V a.c. 50 Hz
032U158002
EV250B Assisted lift operated N C G 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h BB 24,00 V d.c.
032U158016
EV250B Assisted lift operated N C G 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h BB 24 V a.c. 50 Hz
032U158031
EV250B Assisted lift operated N C G 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h BB 230 V a.c. 50 Hz
032U161402
EV250B Assisted lift operated N C G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 6,000 m3/h BB 24,00 V d.c.
032U161416
EV250B Assisted lift operated N C G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 6,000 m3/h BB 24 V a.c. 50 Hz
032U161431
EV250B Assisted lift operated N C G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 6,000 m3/h BB 230 V a.c. 50 Hz
032U162231
EV250B Assisted lift operated N C G 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h BB 230 V a.c. 50 Hz
032U162402
EV250B Assisted lift operated N C G 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h BB 24,00 V d.c.
032U162416
EV250B Assisted lift operated N C G 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h BB 24 V a.c. 50 Hz
032U162431
EV250B Assisted lift operated N C G 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h BB 230 V a.c. 50 Hz
032U5250
EV250B Assisted lift operated N C G 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h -
032U5251
EV250B Assisted lift operated N C G 3/8 10,00 mm FKM 0 - 10 bar DZR brass 2,500 m3/h -
032U5252
EV250B Assisted lift operated N C G 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h -
032U5253
EV250B Assisted lift operated N C G 1/2 12,00 mm FKM 0 - 10 bar DZR brass 4,000 m3/h -
032U5254
EV250B Assisted lift operated N C G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 6,000 m3/h -
032U5255
EV250B Assisted lift operated N C G 3/4 18,00 mm FKM 0 - 10 bar DZR brass 6,000 m3/h -
032U5256
EV250B Assisted lift operated N C G 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h -
032U5257
EV250B Assisted lift operated N C G 1 22,00 mm FKM 0 - 10 bar DZR brass 7,000 m3/h -
032U5260
EV250B Assisted lift operated N C NPT 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h -
032U5261
EV250B Assisted lift operated N C NPT 3/8 10,00 mm FKM 0 - 10 bar DZR brass 2,500 m3/h -
032U5262
EV250B Assisted lift operated N C NPT 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h -
032U5263
EV250B Assisted lift operated N C NPT 1/2 12,00 mm FKM 0 - 10 bar DZR brass 4,000 m3/h -
032U5264
EV250B Assisted lift operated N C NPT 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 6,000 m3/h -
032U5265
EV250B Assisted lift operated N C NPT 3/4 18,00 mm FKM 0 - 10 bar DZR brass 6,000 m3/h -
032U5266
EV250B Assisted lift operated N C NPT 1 22,00 mm EPDM 0 - 10 bar DZR brass 7,000 m3/h -
032U5267
EV250B Assisted lift operated N C NPT 1 22,00 mm FKM 0 - 10 bar DZR brass 7,000 m3/h -
032U5350
EV250B Assisted lift operated N O G 3/8 10,00 mm EPDM 0 - 10 bar DZR brass 2,500 m3/h -
032U5351 EV250B Assisted lift operated N O G 3/8 10,00 mm FKM 0 - 10 bar DZR brass 2,500 m3/h -
032U5352 EV250B Assisted lift operated N O G 1/2 12,00 mm EPDM 0 - 10 bar DZR brass 4,000 m3/h -
032U5353 EV250B Assisted lift operated N O G 1/2 12,00 mm FKM 0 - 10 bar DZR brass 4,000 m3/h -
032U5354 EV250B Assisted lift operated N O G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 4,900 m3/h -
032U5355 EV250B Assisted lift operated N O G 3/4 18,00 mm FKM 0 - 10 bar DZR brass 4,900 m3/h -
032U5356 EV250B Assisted lift operated N O G 1 22,00 mm EPDM 0 - 10 bar DZR brass 5,200 m3/h -
032U5357 EV250B Assisted lift operated N O G 1 20,00 mm FKM 0 - 10 bar DZR brass 5,700 m3/h -
032U537016 EV250B Assisted lift operated N O G 3/8 10,00 mm EPDM 10 bar DZR brass 2,500 m3/h BB 24 V a.c. 50 Hz
032U537031 EV250B Assisted lift operated N O G 3/8 10,00 mm EPDM 10 bar DZR brass 2,500 m3/h BB 230 V a.c. 50 Hz
032U537202 EV250B Assisted lift operated N O G 1/2 12,00 mm EPDM 10 bar DZR brass 4,000 m3/h BB 24,00 V d.c.
032U537216 EV250B Assisted lift operated N O G 1/2 12,00 mm EPDM 10 bar DZR brass 4,000 m3/h BB 24 V a.c. 50 Hz
032U537231 EV250B Assisted lift operated N O G 1/2 12,00 mm EPDM 10 bar DZR brass 4,000 m3/h BB 230 V a.c. 50 Hz
032U537402 EV250B Assisted lift operated N O G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 4,900 m3/h BB 24,00 V d.c.
032U537416 EV250B Assisted lift operated N O G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 4,900 m3/h BB 24 V a.c. 50 Hz
032U537431 EV250B Assisted lift operated N O G 3/4 18,00 mm EPDM 0 - 10 bar DZR brass 4,900 m3/h BB 230 V a.c. 50 Hz
032U537602 EV250B Assisted lift operated N O G 1 22,00 mm EPDM 10 bar DZR brass 7,000 m3/h BB 24,00 V d.c.
032U537616 EV250B Assisted lift operated N O G 1 22,00 mm EPDM 10 bar DZR brass 7,000 m3/h BB 24 V a.c. 50 Hz
032U537631 EV250B Assisted lift operated N O G 1 22,00 mm EPDM 10 bar DZR brass 7,000 m3/h BB 230 V a.c. 50 Hz
032U7631 EV250B Assisted lift operated N C NPT 3/8 10,00 mm FKM 0 - 10 bar DZR brass 2,500 m3/h -
032U7633 EV250B Assisted lift operated N C NPT 1/2 12,00 mm FKM 0 - 10 bar DZR brass 4,000 m3/h -
032U7635 EV250B Assisted lift operated N C NPT 3/4 18,00 mm FKM 0 - 10 bar DZR brass 6,000 m3/h -
032U7637 EV250B Assisted lift operated N C NPT 1 22,00 mm FKM 0 - 10 bar DZR brass 7,000 m3/h -
