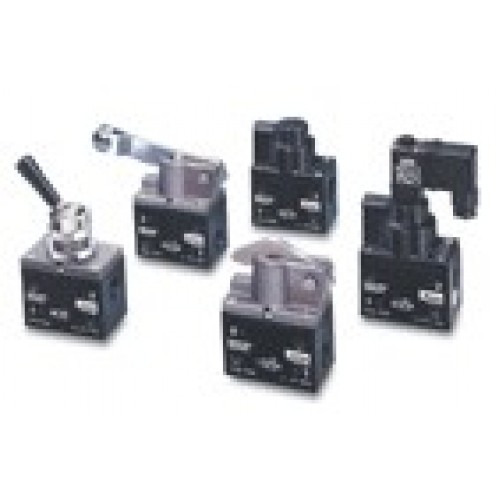

Parker SOLENOID PILOT VALVES HEAVY DUTY POPPET VALVES
This product does not form part of our Global Pneumatics strategy but in some countries a strong local market still exists.
These products are all still available but please contact your local Sales Team for price & delivery.
B102C
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 2/2, Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Ball
PORT SIZE G3/8
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B102PClick to View Part
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 2/2, Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Air Pilot actuator
PORT SIZE G3/8
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B102R
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 2/2, Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Roller Lever/ Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103C
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Ball/Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103F
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Foot/ Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103L
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Hand Lever (Lockdown)
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103M
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Cam/ Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103P
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Air Pilot/Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B103R
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position/ Body Ported
VALVE FUNCTION Poppet
OPERATED Roller Lever/ Spring
PORT SIZE G3/8
MOUNT Inline
FLOW RATE 33 litres/ sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202C
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Ball/Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202E
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Palm Lever/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202F
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Foot/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202L
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Hand Lever (Lockdown)
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202M
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Cam/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202P
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Air Pilot/Spring
OPERATOR CONNECTIONS G1/8
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B202R
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Roller Lever/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203C
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Ball/Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203E
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Palm Lever/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203F
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Foot/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203L
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Hand Lever (Lockdown)
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203M
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Cam/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203P
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Air Pilot/Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
B203R
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Roller Lever/ Spring
PORT SIZE G1/2
MOUNT Inline
FLOW RATE 75 litres/sec
PRESSURE RANGE Maximum 10bar
TEMPERATURE RANGE -10§ to +80§C
BODY MATERIAL Zinc diecast
SEAL MATERIAL NBR
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB122MTF
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB122SClick to View Part
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB122SA
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123MSClick to View Part
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123MSA
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123MTA
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123MTL
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123SAClick to View Part
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123TA
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB123TLClick to View Part
Description Value
PRODUCT TYPE Pneumatic Valve Solenoid
TRADE/BRAND NAME Heavy Duty Poppet Valves
Configurator NO
CAD Drawing Available NO
DB222MSA
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 2/2, Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB223MS
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB223MSA
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB223S
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB223TA
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
DB223TL
Description Value
PRODUCT TYPE Pneumatic Valve Directional Control
CONFIGURATION 3/2 Normally Closed
POSITION/STYLE 2 position
VALVE FUNCTION Poppet
OPERATED Solenoid/Spring
PORT SIZE G1/2
PORT CONNECTION Female
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
103C-100
Description Value
PRODUCT TYPE Pneumatic Switch Operator
TYPE Ball Actuator
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
103L-100Click to View Part
Description Value
PRODUCT TYPE Pneumatic Switch Operator
TYPE Lockdown Lever Actuator
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
103R-100
Description Value
PRODUCT TYPE Pneumatic Switch Operator
TYPE Roller Lever Actuator
TRADE/BRAND NAME Heavy Duty Poppet Valve
Configurator NO
CAD Drawing Available NO
106Click to View Part
Description Value
PRODUCT TYPE Actuator Accessory
TRADE/BRAND NAME Falkoping
Configurator NO
CAD Drawing Available NO
107EC
Description Value
PRODUCT TYPE Actuator Accessory
TRADE/BRAND NAME Falkoping
Configurator NO
CAD Drawing Available NO
107LClick to View Part
Description Value
PRODUCT TYPE Actuator Accessory
TRADE/BRAND NAME Falkoping
Configurator NO
CAD Drawing Available NO
107P
Description Value
PRODUCT TYPE Actuator Accessory
TRADE/BRAND NAME Falkoping
Configurator NO
CAD Drawing Available NO
132R
Description Value
PRODUCT TYPE Kit Repair
STYLE Repair Kit
BRAND/TRADE NAME Redruth
APPLICATION Timer Valve
Configurator NO
CAD Drawing Available NO
Write a review
Your Name:Your Review: Note: HTML is not translated!
Rating: Bad Good
Enter the code in the box below:
