Parker MINIATURE SOLENOID VALVES X-Valve - Miniature Pneumatic Solenoid Valve
Compact, 8 mm PBT plastic valve providing a very light weight solution for portable applications and those applications with limited space and available power.
Product Overview
Description

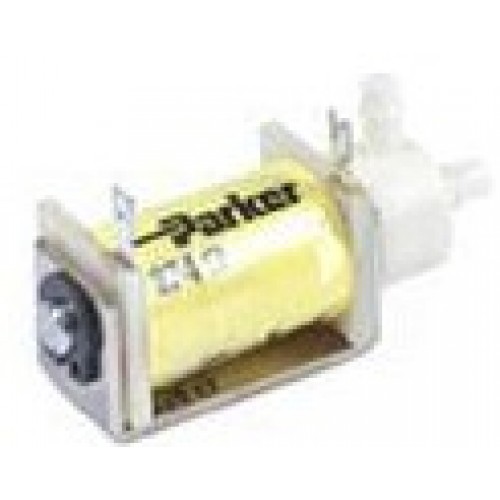

The X-Valve® is a miniature pneumatic solenoid valve measuring
only 8 mm in width. The compact size, light weight and low power
consumption of the X-Valve® is the ideal solution for portable
applications and those applications with limited space and available
power. The body construction of the X-Valve® is suited for manifold or
barbed-tube pneumatic connections and is available in 2-way normally
closed and 3-way universal configurations.
Features
• Direct PC and side-to-side mounting enables compact and efficient
system design
• Large range of pressure options (6, 30 and 100 psi) to meet various
application requirements
• Light weight valve construction is ideal for portable applications
• Available low power model (0.5 Watt) for continuous duty applications
• RoHS compliant
Typical Applications:
• Portable Equipment
• Blood Pressure Monitoring
• Wound Therapy
• Air and Oxygen Delivery
• Sensor Zeroing
Performance Characteristics
Typical Applications Portable Equipment, Blood Pressure Monitoring, Wound Therapy, Air and Oxygen Delivery, Sensor Zeroing
Performance: Flow Rate Range 0 to 11 slpm
Performance: Pressure Range 0 to 100 psi
Dimensions: Width 0.31 in (7.87 mm)
Dimensions: Height 0.48 in (12.20 mm)
Dimensions: Length 0.92 in (23.37 mm)
Wetted Materials: Body PBT, 430 Series Stainless Steel, 302 Series Stainless Steel
Wetted Materials: Seals (Elastomer) FKM, EPDM, Silicone
Cleanliness Standard
Valve Configuration Type 2/3 Way NC, 2/3 Way NO, 3 Way Distributor
Life (# cycles) Up to 25 Million Cycles
Pneumatic Connection Options Barbs, Manifold Compatible
Electrical Connection Options Short Pins, Long Pins
Leak Rate as low as .016 sccm
Response Time as low as 20 msec
Power Requirement (W) 0.5W, 1W
Weight (lbs) 0.16 oz.(4.5g)
