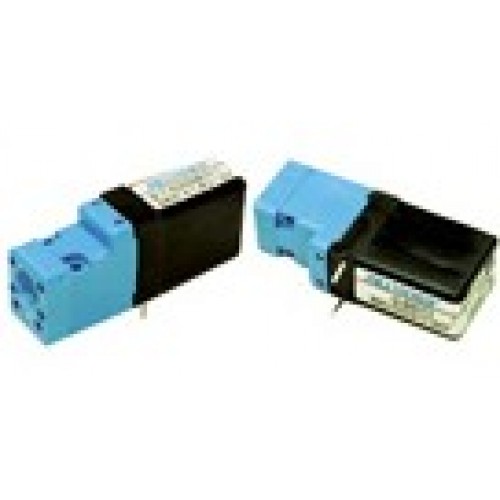

Parker MINIATURE SOLENOID VALVES SRS - MANIFOLD MOUNTED PLASTIC SOLENOID VALVE

The 10mm SRS Series Plastic Solenoid Valve converts a digital electrical signal into a
digital pneumatic output. The SRS Valve is constructed of engineering thermoplastics
and non-corrosive metals to exceed the specifications demanded by critical applications
in the life sciences.

PRODUCT SPECIFICATIONS
Valve Type:
3-Way, 2 Position
(NO, NC, & Distributor)
Media:
Gases and select liquids
Operating Environment:
0-70°C (32-158°F)
Length:
1.5 in (38.1 mm)
Width:
0.394 in (10 mm)
Height:
0.61 in (15.49 mm)
Weight:
.23 oz (6.57 grams)
Internal Volume:
0.0267 in3

 Leak Rate:
<0.016 sccm (bubble tight)
Power:
0.5, 1.0, or 2.0 Watts
Response:
<30 msec cycling (2 Watts)
Pressure:
0 to 85 psig (0.020" orifice)
0 to 50 psig (0.030" orifice)
0 to 20 psig (0.045" orifice)
Vacuum:
0-27 in Hg
Orifice Sizes:
0.020"/0.0075 Cv
0.030"/0.017 Cv
0.045"/0.027 Cv
Porting:
Manifold mount; Gasket and screws supplied
