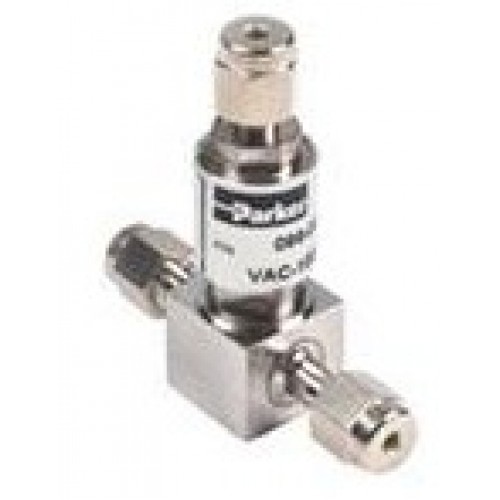

Parker MINIATURE SOLENOID VALVES Series 99 - Miniature High Speed and Pressure Dispense Valve
Parker's Series 99 Dispense valves combine extreme pressures, tight leak specifications and wide temperature ranges with an unmatched small size package.
Product Overview
Description
Series 99 solenoid valves offer outstanding potential for precision control in liquid analysis. Combining high speed, ultra low leak rate, high flow, high pressure and high temperature capability, in a small size. This rugged valve operates with extreme repeatability and is constructed of non-corroding, passivated stainless steel. Series 99 coils are rated for continuous duty and are potted to exclude the environment.
Features
• Smallest footprint and highest performance in its class
• 100% duty cycle in environmental temperatures of up to 221°F (105°C)
• High speed response times of less than 5 ms eliminate delays in the system
• 100% tested to leak-tight 1 x 10-8 cc/sec/atm Helium
• Pressures up to 1250 PSI (86.2 bar)
• Available with a variety of fittings, orifices, seals, and voltages to match your application
• RoHS complianteatures
Typical Applications
• Liquid CO2 Dispense
• Surgical Refrigerant Dispense
• Semiconductor Refrigerant Dispense
Performance Characteristics
Typical Applications Calibrant Gas for Mass Spectrometers, Liquid CO2 dispense, Surgical and Semiconductor Refrigerant Dispense valve,
Valve Type Inert Non Isolation
Vacuum to Pressure Range 1x10-5 torr to 1250 psi (86.2BAR)
Orifice Sizes Available 0.030"(0.76mm) to 0.116"(2.94mm)
Wetted Materials: Body 316 Stainless Steel
Wetted Materials: Sleeve PTFE, Stainless Steel, FKM
Valve Configuration Type 2/3 Way Normally Closed
Wetted Materials: Seal Options FKM & Vespel or FKM
Leak Rate 1 x 10-8 cc/sec/atm Helium
Response Time <5 ms cycling
Mounting Style (integration) A-Lok compression fittings, VacuSeal
Dimensions: Width 0.87" (22.1mm)
Dimensions: Height 3.24" (82.3mm)
Dimensions: Length 3.23" (82.0 mm)
