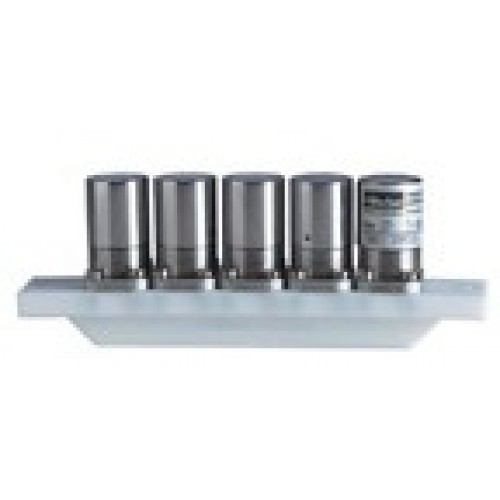

Parker MINIATURE SOLENOID VALVES SERIES 27 - CHEMICALLY INERT ULTRA-HIGH SPEED MANIFOLD

Also Listed as Inert Isolation PTFE Valve and OEM System
Series 27 valves combine the high speed and small size of the Series 9 valves with the
chemical inertness of the Series 18 (the media contacts only PTFE or PEEK). Available in
2, 3, 4, and 6 solenoid manifolds, Series 27 valves offer a variety of styles and constructions,
including an inline manifold and a Fast-WashoutTM design.

PRODUCT SPECIFICATIONS
Valve Type:
Valve Manifold
Media:
Liquids and gases
Operating Environment:
4-66°C (40-150°F)
Weight:
14.0 oz (6 Position, PTFE Body Option)
Internal Volume:
104 µL (4 Solenoid, 1/4-28,
0.31/0.043" Option)
Porting:
1/4-28 Threaded Ports

Leak Rate:
Bubble Tight
Materials Contacting Media:
PTFE (Body)
Response:
20 millisecond
Operating Pressure:
Vacuum to 20 psig (1.38 BAR)
Orifice Sizes:
0.040" (1.02 mm)
0.030" (0.76 mm)
0.062" (1.57 mm)
