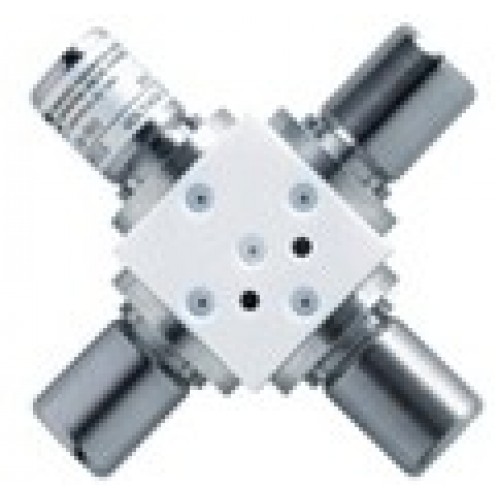

Parker MINIATURE SOLENOID VALVES SERIES 18 - CHEMICALLY INERT MANIFOLD

Also Listed as Inert Isolation PTFE Valve and OEM System
Parker designed Series 18 valves for compact installation in multi-liquid or gas control
systems. Available with multiple inlets and one outlet (or vice versa), Series 18 uses
all PTFE wetted parts, eliminating the need for tubing and connections between discrete
valves and reducing dead volume.

Valve Type:
Valve Manifold
Media:
Liquids and gases
Operating Environment:
4-66°C (40-150°F)
Weight:
14.5 oz (4 Position, PTFE Body Option)
Internal Volume:
299 µL (4 Solenoid, 1/4-28, 0.060" Option)
Porting:
1/4-28 Threaded Ports

 Leak Rate:
Bubble Tight
Materials Contacting Media:
PTFE (Body)
Response:
20 msec cycling
Operating Pressure:
Vacuum to 20 psig (1.38 BAR)
Orifice Sizes:
0.040" (1.02 mm)
0.030" (0.76 mm)
0.060" (1.5 2mm)
