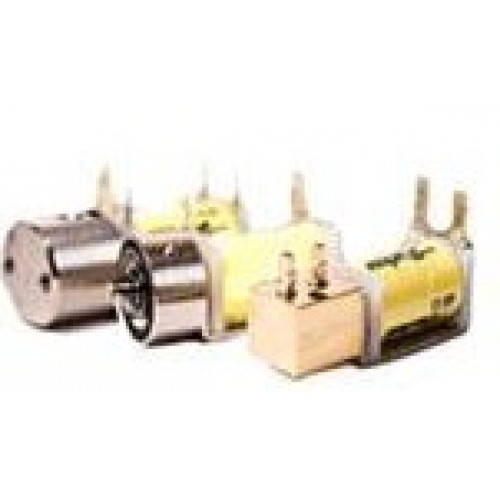

Parker MINIATURE SOLENOID VALVES Series 11/25/26 - Miniature Solenoid Valve
15 mm stainless and brass PC mountable solenoid valve designed for medical and analytical devices and systems that require reliable and consistent performance with low outgassing and a bubble tight seal.
Product Overview
Description
The Series 11 miniature pneumatic solenoid valve is a robust and proven product with a reputation for reliable and consistent performance. The Series 11 miniature solenoid valve is the preferred choice of major OEM's in the medical and analytical market. With valve bodies made from brass or stainless steel, the Series 11 miniature solenoid valve is an ideal solution for general purpose applications and those applications requiring low out-gassing and a bubble-tight seal. The Series 25 Miniature pneumatic solenoid valve is a robust and proven product with a reputation for reliable and consistent performance.
The Series 25 miniature solenoid valve is the preferred choice of major OEM's in the medical and analytical market. With valve bodies made from nickel-plated brass and multiple pneumatic and electrical interface options, the Series 25 miniature solenoid valve is the ideal solution for general purpose applications and those applications requiring low out-gassing and a bubble-tight seal.
The series 26 pneumatic solenoid valve is a robust and proven product with a reputation for reliable and consistent performance. The Series 26 miniature solenoid valve is the preferred choice of major OEM's in the medical and analytical market. With valve bodies made from nickel-plated brass and multiple pneumatic and electrical interface options, the Series 26 miniature solenoid valve is the ideal solution for general purpose applications and those applications requiring low out gassing and a bubble-tight seal.
Performance Characteristics
Typical Applications Oxygen Conservers and Concentrators, Sieve bed switching, Anesthesia Delivery, Compression Therapy, Gas Chromatography, Insufflators, Flow control/shut-off
Performance: Flow Rate Range 0 to 46 slpm
Performance: Pressure Range 0 to 100 psi
Dimensions: Width 0.63 in (15.88 mm)
Dimensions: Height 0.67 in (17.02 mm)
Dimensions: Length 2.04 in (51.69 mm)
Wetted Materials: Body Brass 360 HO2, 430 FR Stainless Steel, 300 Series Stainless Steel
Wetted Materials: Seals (Elastomer) FKM, EPDM
Cleanliness Standard
Valve Configuration Type 2/3 Way NC, 2/3 Way NO, 3 Way Distributor, 2 way NC Universal
Life (# cycles) Up to 200 Million Cycles
Pneumatic Connection Options Manifold Mount, Barbs, 10-32 Female Threaded Port, 10-32 Male Threaded Port
Electrical Connection Options Wire Leads, PC Mount, Quick Connect Spades, Solder Tabs
Leak Rate <0.016 sccm
Response Time <30 msec
Power Requirement (W) 0.5W, 1.0W, 2.0W
Weight (lbs) 2.1 oz (60 g)
