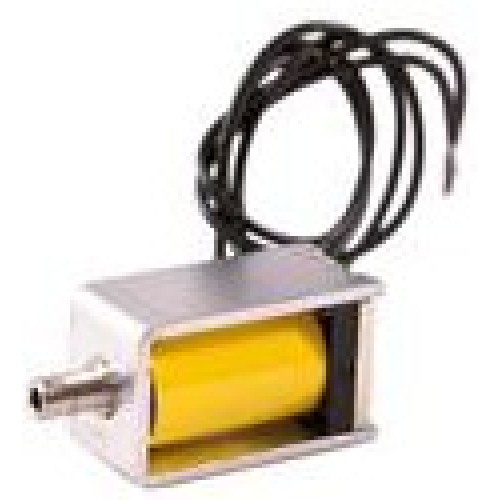

Parker MINIATURE SOLENOID VALVES PND Series - Miniature Pneumatic Solenoid Valve

Ecomonical, 10 mm normally open miniature exhaust valve designed for systems that require reliable and consistent pressure relief. Capable of flow rates up to 12 slpm with inlet pressures of up to 6 psig.
Product Overview
Description
The PND Series miniature pneumatic solenoid valve is an economical
2-way normally open exhaust valve designed for rapid pressure relief.
The PND Series miniature pneumatic solenoid valve is the perfect
solution for safety oriented applications that require pressure relief
to atmosphere upon power loss.

Features
• Compact, economical design to reduce size and cost of integration
• Normally Open configuration to ensure rapid deflation upon
power loss
• Low power design reduces heat generation and power consumption
• Proven performance tested to 250,000 life cycles
• RoHS compliant

Typical Applications:
 Non-Invasive Blood Pressure Devices
 Normally Open Fail-Safe Exhaust

Performance Characteristics
Typical Applications  Blood Pressure Monitoring, Normally Open Fail-Safe Exhaust
Performance: Flow Rate Range  0 to 12 slpm
Performance: Pressure Range  0 to 6 psi
Dimensions: Width  0.52 in (13.21 mm)
Dimensions: Height  0.60 in (15.24 mm)
Dimensions: Length  1.01 in (25.60 mm)
Wetted Materials: Body  SPCC, PBT, 303 Stainless Steel
Wetted Materials: Seals (Elastomer)  Silicon, Nickel-Plated Steel
Cleanliness  Standard
Valve Configuration Type  2-Way Normally Open
Life (# cycles)  up to 250K
Pneumatic Connection Options  Barbed
Electrical Connection Options  Wire Leads
Leak Rate  <.016 sccm
Response Time  <100 msec
Power Requirement (W)  0.5W
Weight (lbs)  0.27 oz (7.7 g)
