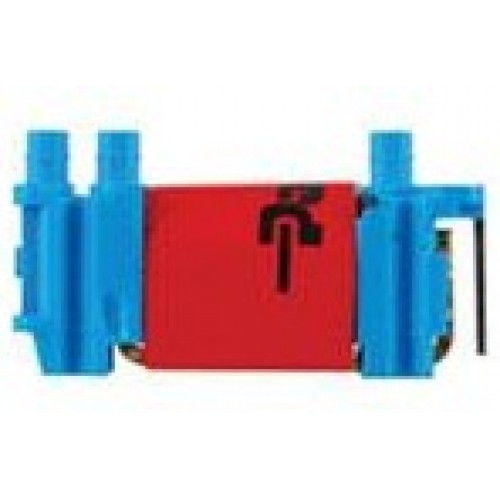

Parker MINIATURE SOLENOID VALVES NEX -Miniature Inert Non Elastomer Solenoid Valve

Parker's NEX valve is a family of non-elastomeric valves that are ideal for handling aggressive liquids such as inks and other solvents.
Product Overview
Description
Parker’s NEX-Valve is a direct-acting, poppet-style valve featuring 2-way bidirectional flow that incorporates many of the proven features of the X-valve®. NEX is inert and eliminates disadvantages commonly encountered in elastomeric valves handling aggressive liquids.

Features
• Unique non-elastomeric design is compatible found with Alcohols, Solvents, Water and Solvent-based inks
• Power consumption as low as 0.5 Watt; PWM and hit & hold circuit compatible
• Compact and efficient side-by-side mounting
• Ensures high reliability with its single piece body design
• Allows for direct tubing connection or a radial seal for manifold assemblies through its universal barb design
• RoHS compliant

Typical Applications
• Wide Format Printing
• Reservoir Fill / Drain
• Liquid Cooling Systems

Performance Characteristics
Typical Applications  Printing: MEK, Toluene, other alcohols and solvents
Valve Type  Poppet Style
Vacuum to Pressure Range  0-30 psi
Flow Rate (Orifice Size)  .030 or .045"
Wetted Materials: Body  PBT
Wetted Materials: Diaphragm/Armature  430 and 302 Stainless Steel
Valve Configuration Type  2 Way NC
Leak Rate  .02 cc/min (water tight)
Response Time  <20 msec cycling
Mounting Style (integration)  Barbed or Manifold Mountable
Dimensions: Width  7.87mm
Dimensions: Height  .375"
Dimensions: Length  .92"
