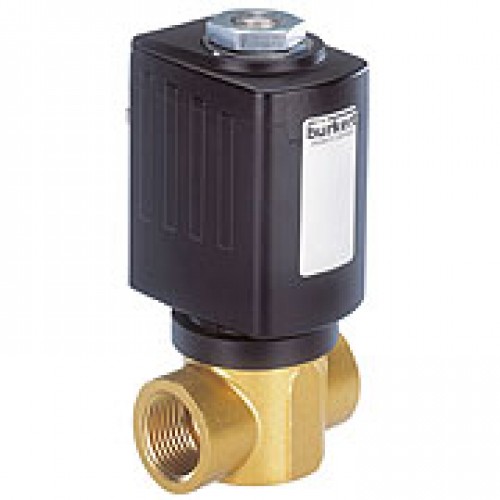

Burkert valve Steam up to 180 °C Type 6027 - Direct acting solenoid valves
2/2-way Compact Solenoid Valve,
G 1/4 - G 1/2
Direct-acting, normally closed
Brass and stainless steel body
Electrical connection cable plug Form A
High pressure version up to 100 bar
High temperature version up to +180 !
Technical data
G 1/4, G 3/8, G 1/2 (NPT and RC on request)
Port connection
DN 2.0 - 12.0
Ori ce
Brass or stainless steel 1.4404 (316L)
Body material
Epoxy
Coil material
Coil insulation class
Epoxy class H
FKM, PTFE/FKM and PTFE/PEEK for high temperature
Seal material
versions (EPDM on request)
Vacuum, neutral gases and liquids (e.g. compressed air,
Medium
town gas, natural gas, water, hydraulic oil, petrol) and
slightly aggressive medium (stainless steel version)
Hot uids and steam (only with stainless steel body)
High temperature version
Medium temperature
-10 to +140!
Seal material FKM, PTFE/FKM
-40 to +180 !
Seal material PTFE/PEEK
-10 to +55!
Ambient temperature
2
max. 21 mm
/s
Viscosity
24 V DC, 24 V/50 Hz, 230 V/50 Hz
Voltages
!10
Voltage tolerance
100 % continuous operation
Duty cycle / single valve
According to DIN EN 175301-803 Form A for cable
Electrical connection
plug Type 2508 (see Ordering chart for accessories)
IP65 with Cable Plug
Protection class
As required, preferably with actuator in upright position
Installation
Ordering chart for valves with brass or stainless steel body, standard temperature version
Valves with AC19 coil (42 mm), seal material FKM, without cable plug
2)
Pressure range [bar] Item no.
1)
for liquid and gaseous
medium
ce
Circuit function Port connection Ori[mm] Kv value water [m3/h] 024/DC 024/50 230/50DC AC
Seal material FKM, medium temperature -10 to +140!
A 2/2-way valve
Brass body
NC
Threaded portG 1/43.00.280-300-25178 295178 296178 297
4.00.540-120-16178 299178 300178 301
5.00.730-60-10178 303178 304178 305
6.00.950-30-6178 307178 308178 309
G 3/83.00.280-300-25178 311178 312178 313
4.00.540-120-16178 315178 316178 317
5.00.730-60-10178 319178 320178 321
6.00.950-30-6178 323178 324178 325
8.01.60-10-3178 327178 328178 329
G 1/26.00.950-30-6178 331178 332178 333
8.01.60-10-3178 335178 336178 337
10.01.80-0.40-2.0178 339178 340178 341
Stainless steel 1.4404 (316L)
Threaded portG 1/43.00.280-300-25178 239178 240178 241
4.00.540-120-16178 243178 244178 245
5.00.730-60-10178 247178 248178 249
6.00.950-30-6178 251178 252178 253
G 3/83.00.280-300-25178 255178 256178 257
4.00.540-120-16178 259178 260178 261
5.00.730-60-10178 263178 264178 265
6.00.950-30-6178 267178 268178 269
8.01.60-10-3178 271178 272178 273
G 1/26.00.950-30-6178 275178 276178 277
8.01.60-10-3178 279178 280178 281
10.01.80-0.40-2.0178 283178 284178 285
12.02.00-0.20-1.2178 287178 288178 289
B 2/2-way valve Brass body
G1/4
30.280-16211 914228 487228 488
NO
40.540-10208 623228 489228 490
60.950-6211 915
G1/2
81.60-3211 916228 503228 504
101.80-2210 436219 530210 438
Stainless steel
G1/430.280-16230 243230 244230 245
40.540-10230 246230 247230 248
G3/860.950-6230 255230 256230 257
G1/281.60-3230 261230 262230 263
101.80-2225 248230 264230 265
Ordering chart for valves with brass body, standard temperature and high pressure version
All valves with AC19 coil (42 mm), seal material PTFE/FKM, without Cable Plug
2)
Pressure range [bar] for liq- Item no. per voltage/frequency
uid and gaseous medium [V/Hz]
DCAC
1)
ce [mm]
Circuit function Port connection Ori Kv value water [m3/h] for liquid and gaseous medium Liquids Gaseous medium 024/DC 024/50 230/50
A 2/2-way valve Seal material PTFE/FKM, medium temperature -10 to +140!
NC
Brass body
Threaded portG 1/42.00.140-800-750-80184 667 184 668
4.00.540-200-300-50184 670 184 671
6.00.950-50-12184 674 184 675
G 3/86.00.950-50-12184 677 184 678
8.01.60-10-5184 680 184 681
G 1/28.01.60-10-5184 683 184 684
10.01.80-0.40-20-3184 686 184 687
1) 2)
Measured at +20 !C, 1 ba pressure at valve inlet and free outleton request
2)
Measured as overpressure to the atmospheric pressure
Please note that the cable plug has to be ordered separately, see accessories on page 5 and separate datasheet for Type 2508.
Ordering chart valves with stainless steel body, also for high temperatures and high pressure
All valves with AC19 coil (42 mm), seal material PTFE/PEEK, without Cable Plug
2)
Pressure range [bar] for liquid Item no. per voltage/frequency
and gaseous medium [V/Hz]
DCAC
1)
ce [mm]
Circuit function Port connection Ori Kv value water [m3/h] for liquid and gaseous medium Liquids Gaseous medium 024/DC 024/50 230/50
Seal material PTFE/PEEK, also for high temperatures up to +180!
A 2/2-way valve
Stainless steel body
NC
Threaded portG 1/42.00.140-1000-750-100184 689 184 690
4.00.540-200-300-50184 692 184 693
G 3/86.00.950-50-12184 695 184 696
8.01.60-10-5184 698 184 699
G 1/210.01.80-0.40-20-3184 701 184 702
12.02.00-0.20-1.20-2184 704 184 705
1) 2)
Measured at +20 !C, 1 bar pressure at valve inlet and free outlet
Ordering chart accessories
Cable plug Type 2508 according to DIN EN 175301-803 Form A
Fixing screw
Flat seal
Circuit Voltage/Frequency Item no.
Included in delivery is a connector with at
without (Standard) 0 - 250 V AC/DC008 376
seal and xing screw. For other cable plug
with LED 12 - 24 V AC/DC008 360
versions according to DIN EN 175301-803
with LED and varistor 12 - 24 V AC/DC008 367
(previously DIN 43650) Form A, see separate
with recti er, LED and varistor12 - 24 V AC/DC008 363
datasheet for Type 2508. When you click on
with LED 200- 240V008 362
the orange box "More info." below, you will
with LED and varistor 200- 240V008 369
come to our website for the resp. product
further versions see datasheet Type 2508
where you can download the datasheet.
