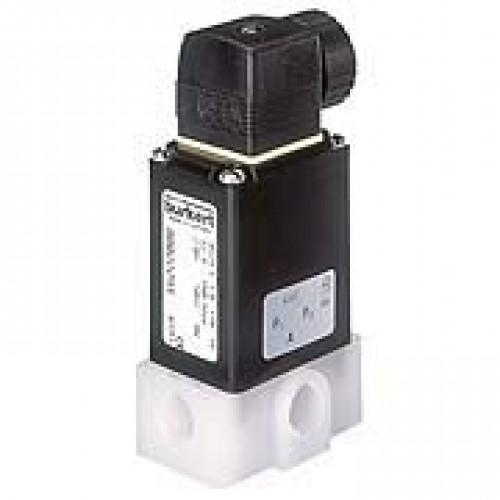

Burkert valve Aggressive media Type 0121 - Direct acting pivoted armature solenoid valve

2/2 and 3/2-way Solenoid Valve
for aggressive  uids
 Pivoted armature valve with manual override
 Direct-acting with hermetic isolation of fluid
 Different circuit functions
 Body in plastic and stainless steel
 Seal materials suitable for aggressive mediums

Technical data
DN2.0 to 8.0
Ori ce
PTFE, (PP, PVDF on request)
Body material
PVC (resistant acc. to DIN 8062, 8061)
Stainless steel 1.4401
FKM, FFKM, (EPDM on request)
Seal materials medium
Oxydizing acids and substances, oils, salt solutions,
FKM
waste gases, technical vacuum
The valve is particularly suitable for aggressive media,
FFKM
aromatic compound, ether, ester, ketone (please see
Brkert chemical resistance chart
Medium temperature
body + seal
(Material combination)
-10 to +50 !
PVC + FKM
-10 to +90 !
PTFE/St. st. + FKM
-10 to +90 !
PTFE/St. st. + FFKM
max. +50 !
Ambient temperature
2
/s
max. 37 mm
Viscosity
!10
Voltage tolerance
max. 100/min with AC
Cycling rate
max. 10/min with UC
Duty cycle
St. st. body 100% ED
  Continuous operation
and with universal Current (UC)

with PVC 10% ED (10 min)
 Intermittent operation
with PP, PTFE and PVDF body (40% ED, 10 min)
Electrical connection
Cable plug for cable  6 - 7 mm
with AC and DC
(supplied as standard) or cable connection
IP 65 with cable or cable plug
Protection class
As required, preferably with actuator upright
Installation

Ordering chart for valves (other versions on request)
valves with plastic or stainless steel body, manual override and cable plug (UC with silicon cable, see footnote)
 ce
Circuit function Port connection Ori[mm] Kv value water[m3/h] Pressure  range [bar] Body material Seal material Voltage/ frequency [V/Hz] Item no.
Stainless steel body
A 2/2-way valve NC
G 1/44.00.30-2St. st.FKM024/DC055 244

0-4St. st.FKM024/50056 934
042/50052 817
230/50052 441
6.00.60-1St. st.FKM024/DC040 482
0-2St. st.FKM024/50057 086
110/50067 659
230/50054 595
Plastic body PVC
G 3/84.00.30 - 2PVCFKM024/DC049 654
0 - 4PVCFKM024/50048 940
230/50047 859
G 3/86.00.60 - 1PVCFKM024/DC048 749
0 - 2PVCFKM024/50049 348
110/50050 553
230/50047 810
G 3/88.01.00 - 1PVCFKM024/UC048 697
024/50052 800
230/50052 302
E 3/2-way mixer valve
Stainless steel body
G 1/44.00.30-2St. st.FKM230/50042 457
Plastic body PTFE
G 3/84.00.30 - 2PTFEFFKM024/UC130 933
230/50130 934
F 3/2-way distributor valve
Plastic body PVC
G 3/8 6.00.60 - 1PVCFKM024/DC049 533
0 - 2PVCFKM024/50052 181
110/50050 336
230/50047 916
