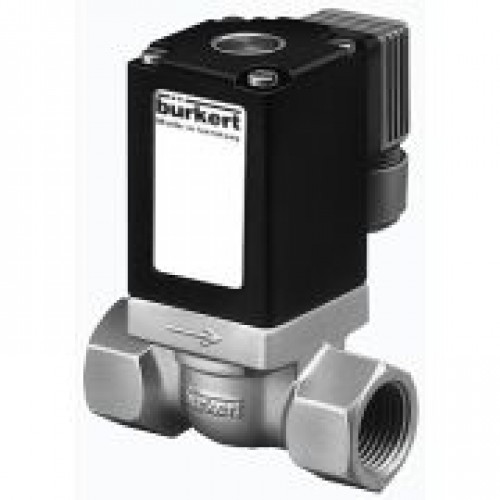

Buerkert valve Neutral gaseous media Type 0293 - Direct acting solenoid valve for gases

2/2-way Solenoid Valve for
combustible gases, 0150mba
 Direct acting (normally closed) Solenoid Valve
 Vibration resistant screw block coil construction
 Seal and diaphragm according to DIN EN 549
 Integrated filter

Technical data
Body material Brass
Inner part valve 1.4105:1.4571
Seal materials NBR
Medium Flammable liquids such as gas, natural gas, liquid petro-
for NBR leum gas (LPG), acetylene, hydrogen
Medium temperature  -15 to +60 !
for NBR
Ambient temperature. -15 to +60 !
Ambient Also open air (open cover recommended)
Port connection Threaded ports G 3/4 and G1
Special features Sieve in inlet
Operating voltages 230 V/50 Hz
230 V/UC
Voltage tolerance !10
Cycling rate ca. 100-150/min for AC
ca. 10-15/min for UC
Duty cycle 100% continuous rating
Electr. Connection Cable plug for  7 mm cable (included in delivery)
Protection class IP 65 with cable plug
DVGW Approval Group 2, class A
Ful lled standards DIN EN 161
Installation As required, preferably with actuator upright
