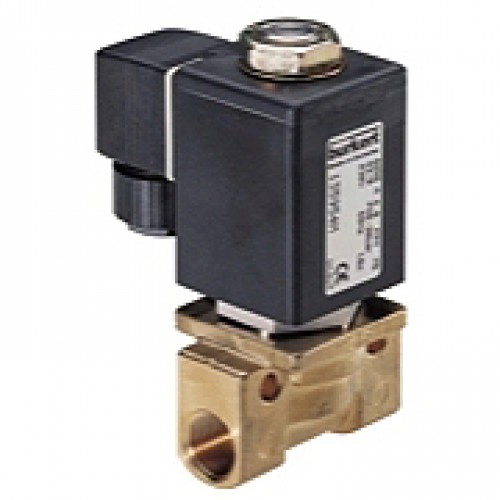

Burkert valve Neutral gaseous media Type 0355 - Solenoid valve for temperatures up to 180 degrees celsius

3/2-way Solenoid Valve for high
temperatures, G 1/4
 Seat valve direct acting
 Media temperature up to +180 !
 Push-over solenoid system
 For gases and fluids

Technical data
DN 2.0 - 4.0
Ori ce
Brass with stainless steel seat 1.4305,
Body materials
Stainless steel 1.4581
Epoxy
Coil material
H
Coil insulation class
Stainless steel
Inner part of valve
NBR, FKM, PTFE, EPDM
Seal material
Media
Neutral  uids, hydraulic oil, oil without additives
  NBR
Oil and fat-free  uids
  EPDM
Per-solutions, hot oils with additives
  FKM
Steam, organic solvents
  PTFE
Media temperature
-10 to +  90 !
  NBR
-40 to +130 !
  EPDM
   0 to +130 !
  FKM
-40 to +180 !
  PTFE
Max. +55 !
Ambient temperature
!10
Voltage tolerance
100% continuous rating
Duty cycle
Tag connector acc. to DIN EN 175301-803 Form A
Electrical connection
(previously DIN 43650) for cable plug Type 2508
(supplied as standard)
IP 65 with cable plug
Protection class
As required, preferably with actuator upright
Installation

Ordering chart for valves (other versions on request)
Brass or stainless steel body, all valves with cable plug
Item no. per voltage/frequency [V/Hz]
 ce
/h]
3
Circuit function Port connection  Ori[mm] Kv value water [m 024/DC  024/50  230/50
Pressure range [bar] Seal material
C 3/2-way,  Brass body
valve NC
G 1/42.00.110-16EPDMCC066 0
2 (A)
NBR043 089026 069068 078
0-14PTFE062 188049 998049 025
3 (R)
1(P)
3.00.20-10FKM064 392C126 05
NBR068 557017 668061 174
0-8PTFE052 665067 817054 885
4.00.40-5FKMCC046 6
NBR061 104019 095061 019
PTFE052 078065 552058 403
Stainless steel body
G 1/44.00.40-5PTFECC021 2
FKMCC066 7
