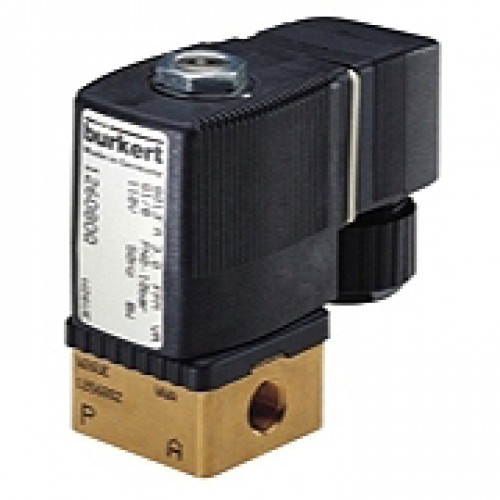

Burkert valve Neutral gaseous media Type 6013 - Direct acting solenoid valve
2/2-way direct acting solenoid valve
High quality seal material
Special versions up to +180oC
Impulse version optional
Threaded port and sub-base connections
Explosion proofed version optional
Technical data
Body material
Brass, stainless steel 1.4305
Type 6013
Brass, stainless steel 1.4305
Type 6013 A
FKM, PTFE/Graphite (EPDM on request)
Seal material
Silicon, oil and fat free version
Analysis version
-4
Tightness <10
mbar l/s
Type 6013 A
Limit value for risidual carbon
<0.2 mg/dm2
Type 6013 A
Technical vacuum
Medium
Neutral gases and liquids
Type 6013
(e.g. compressed air, water, hydraulic oil)
Neutral medium, which does not attack the body
Type 6013 A
and seal materials (see chemical resistance chart)
Media temperature
-10 to +100 !C(PA coil) till 120oC (Epoxy coil)
FKM
Up to +180 oC (see chemical resistance chart)
PTFE/Graphite
-10 to 100!C (AC) -10 to 120!C (D
FKM, Circuit function B
Max. +55 !
Ambient temperature
Max. 21 mm2/s
Viscosity
Port connection
G1/8, G1/4, G3/8, sub-base
Type 6013
G1/8, G1/4
Type 6013 A
Operating voltage
24 V DC, 24 V/50 Hz, 230 V / 50 Hz
Type 6013
24 V DC, 230 V / 50 Hz (other voltages on request)
Type 6013 A
! 10
Voltage tolerance
100% continuous rating
Duty cycle/single valve
Intermittent operation 60% (30 min) or with 5 W coil
With block assembly on manifold
on request
Tag connector acc. to DIN EN 175301-803 Form A
Electrical connection
(previously DIN 43650) for cable plug Type 2508
(see accessories)
As required, preferably with actuator upright
Installation
No oils, fats or silicone to be used during installation
Assembly
IP65 with Cable Plug
Protection class
Polyamide class B
Coil insulation class
Epoxy class H
Technical data, continued
Circuit function A
1)
Ori ce Port Kv-value
Electr. powerCoil sizeResponse times
Weight Power consumption
connection water
Inrush Hold opening closed
[mm]
[W]
[m3/h] [g]
(AC) (AC) [ms] [ms]
2.0G1/80.12325 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
2.0G1/40.12465 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
2.0sub-base0.12290 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
2.5G1/80.16325 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
2.5G1/40.16465 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
3.0G1/80.23325 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
3.0G1/40.23465 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
3.0G3/80.23550 10W AC or 10WDC (11) 30 VA22 VA6 (40mm)2030
4.0G1/40.30465 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
4.0G3/80.30550 10W AC or 10WDC (11)30 VA22 VA6 (40mm)2030
6.0G1/40.55465 8W AC or 8W DC (9)24 VA17 VA5 (32mm)2030
6.0G3/80.55550 10W AC or 10WDC (11)30 VA22 VA6 (40mm)2030
Circuit function B
1)
Ori ce Port Kv-value
Electr. powerCoil sizeResponse times
Weight Power consumption
connection water
Inrush Hold opening closed
[mm]
[W]
[m3/h] [g]
(AC) (AC) [ms] [ms]
2.00G 1/80.123257 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
2.00G 1/40.124657 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
2.00sub-base 0.122907 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
3.00G 1/80.233257 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
3.00G 1/40.234657 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
3.00sub-base0.232907 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
4.00G 1/40.34657 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
6.00G 1/40.554657 W(AC) or 8 W DC (9)24VA17VA5 (32mm)2030
Ordering chart for valves (other versions on request)
6013 Universal valve with FKM seal, brass and stainless steel body (Polyamide coil)
Delivered without cable plug (see accessories)
2)
1)
ce [mm]
Circuit function Ori Portconnection Kv value water[m3/h] Coil power [W] Pressure range [bar] Voltage/Frequency[V/Hz] Item no.brass bodyFKM Seal Item no.Stainless steel body, FKM seal
2.0G 1/80.1280 - 12024/DC134 237134 233
A 2/2-way valve NC
0 - 25024/50132 865134 234
0 - 25230/50134 239134 236
G 1/40.1280 - 12024/DC137 537137 533
0 - 25024/50137 538137 534
0 - 25230/50137 540137 536
sub-base0.1280 - 12024/DC134 244
0 - 25024/50134 245
0 - 25230/50134 247
2.5G 1/80.1680 - 10024/DC134 240
0 - 16024/50134 241
0 - 16230/50134 243
3.0G 1/80.2380 - 6024/DC126 091126 078
0 - 10024/50126 092126 079
0 - 10230/50126 094126 081
G 1/40.2380 - 6024/DC125 301125 317
0 - 10024/50125 302126 082
0 - 10230/50125 304126 084
4.0G 1/40.3080 - 1.5024/DC125 306125 318
0 - 4024/50125 307125 319
0 - 4230/50125 309125 320
6.0G 1/40.5580 - 0.5024/DC125 311126 086
0 - 1.5024/50125 312126 087
0 - 1.5230/50125 314126 089
1) 2)
Measured at +20 !C, 1 ba pressure at valve inlet and free outlet..
2)
Measured as overpressure to the atmospheric pressure
Ordering chart for valves
6013 Universal valve with FKM seal, brass body (Epoxy coil)
Delivered without cable plug (see accessories)
1)
2)
ce [mm]
Item no..
Circuit function Ori Portconnection Kv value water[m3/h] Pressure range [bar] Coil power[W] Voltage/Frequency[V/Hz]
824/DC213 543
B 2/2-way valve NO
2.0G1/80.120 - 16
7230/50213 550
824/DC213 545
G1/80.230 - 8
7230/50213 551
3.0
824/DC213 546
G1/40.230 - 8
7230/50213 552
8 024/DC213 548
4.0 G1/4 0.3 0 - 4
7 230/50213 553
8 024/DC213 549
6.0 G1/4 0.55 0 - 2
7 230/50213 554
