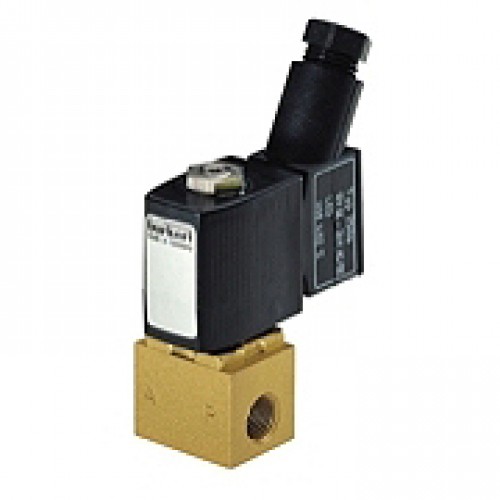

Buerkert valve Neutral gaseous media Type 6011 - Direct acting solenoid valve

2/2-way Miniature Solenoid Valve
 Direct-acting
1)
 0 ... 21 bar
 DN 1.2 ... 2.4 mm
 M5, G1/8 and sub-base
 21 mm coil spacing when mounted on manifold

Technical data
Body material
brass, polyamide (PA), stainless steel 1.4305
 Type 6011
brass, stainless steel 1.4305
 Type 6011 A
FKM
Sealing material
version free from silicones, oil and grease
(Typ 6011 A)
Analytical version
-4
 mbar l/s
leaktightness better than 10

Limit value for remainder
carbon (Type 6011 A)
<0,2 mg/dm2
  technical vacuum
Medium
  neutral gases and  uids (e.g. compressed air, water
 Type 6011
 hydraulic oil
 Type 6011 A
  neutral/aggressive media that do not attack the
   body and seal materials
-10 ... +100 !
Medium temperature
max. +55 !
Ambient temperature
max. 21 mm2/s
Viscosity
Port connection
M5, G1/8, sub-base
 Type 6011
G1/8, sub-base
 Type 6011 A
Betriebsspannung
24 V DC, 24 V/50 Hz, 110 / 230 V / 50 Hz
 Typ 6011
24 V DC, 230 V / 50 Hz
 Typ 6011 A
! 10
Voltage tolerance
100 % continuous rating
Duty cycle/single valve
Intermittent operation 60 % (30 min)
when mounted as a block
or with 2 W coil (on request)
on a manifold
  to DIN EN 175301-803* Form C for cable plug Type 2506
Electrical connection
   (see Ordering chart for Accessories)

  Form B (industrial standard) for Type 2507
 (see Ordering chart for Accessories)
as required, preferably with actuator upright
Installation
no oil, grease or silicones to be used as installation aids
Assembly
ca. 125 g
Mass
IP65 with cable plug
Protection class

Solenoid valve complete in ported or flanged version with electrical coil
connection to DIN EN 175301-803* Form C for cable plug Type 2506
1)
 ce
Circuit function Ori[mm] Portconnection Kv value water  [m/h] Pressure range[bar] Voltage/Frequency[V/Hz] Item no. Brass body Item no. Stainless steel body
A
1.2M50.0450-1224/DC134 084-
al;
0-2124/50134 085-
A
0-21110/50134 086-
0-21230/50134 087-
P
1.6M50.060-624/DC134 088-
0-1224/50134 089-
0-12110/50134 090-
0-12230/50134 091-
G1/80.060-624/DC134 071134 103
0-1224/50134 092134 104
0-12110/50134 093134 105
0-12230/50134 094134 106
2.0G1/80.110-4.524/DC134 095134 107
0-824/50134 096134 108
0-8110/50134 097134 109
0-8230/50134 098134 110
2.4G1/80.130-324/DC134 099134 111
0-624/50134 100134 112
0-6110/50134 101134 113
0-6230/50134 102134 114
1.2sub-base 0.0450-1224/DC134 115-
0-2124/50134 116-
0-21110/50134 117-
0-21230/50134 118-
1.6sub-base 0.060-624/DC134 119134 131
0-1224/50134 120134 132
0-12110/50134 121134 133
0-12230/50134 122134 134
2.0sub-base 0.110-4.524/DC134 123134 135
0-824/50134 124134 136
0-8110/50134 125134 137
0-8230/50134 126134 138
2.4sub-base 0.130-324/DC134 127-
0-624/50134 128-
0-6110/50134 129-
0-6230/50134 130-
1)
Solenoid valve complete in threaded or flanged version with electrical coil
connection to DIN EN 175301-803* Form C for cable plug Type 2506
 ce
Circuit function Ori[mm] Port connection Kv value water  [m/h] Pressure range [bar]1) Voltage/Frequency[V/Hz] Item no. Brass body Item no. Stainless steel body
A 1.6G1/80.060-624/DC137 794137 800
0-12230/50137 795137 801
A
2.0G1/80.110-4.524/DC137 796137 802
0-8230/50137 797137 803
P
2.4G1/80.130-324/DC137 798137 804
0-6230/50137 799137 805
1.2sub-base0.0450-1224/DC137 806137 812
0-21230/50137 807137 813
1.6sub-base0.060-624/DC137 808137 814
0-12230/50137 809137 815
2.0sub-base0.110-4.524/DC137 810137 816
0-8230/50137 811137 817
