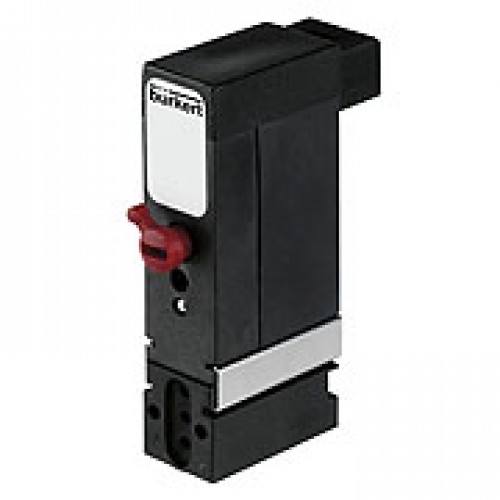

Burkert valve Neutral gaseous media Type 6144
3/2-way Flipper Solenoid Valve
Direct-acting
0 to 10 bar
Low power consumption
Sub-base connection
10mm width per station
Standard, EEx ia Version
Technical data
PPS (Polyphenylensul de)
Body material
FKM
Seal material
Compressed air lubricated, oil-free or dry; neutral
Media
gases and liquids (5m ltering); technical vacuu
0 to +55!
Media temperature
0 to +55!C
Ambient temperature
! Brkert an
Port connection
!
Lateral ange
Rectangular plug as standard; on request:
Electrical connection
! Circular plug M8x
2
! Flying lead 0.2 m
, 300 mm
! Blank connector (5.08 mm
Type of protection
without
Standard version
II 2G Ex ia IIC T4 T5 T6 PTB01 ATEX 2048
Ex version
IECEx PTB 07.0063
1) 1)
24V/DC
12V/DC on request
Operating voltage
Further voltages on request
2)
!10 (Further voltages on request)
Voltage tolerance
0.8W
Nominal power
Monostable
Switching function
Bistable (impulse) on request
100% continuous rating
Duty cycle
As required, preferably with actuator upright;
Installation
5mm minimum distance to ferromagnetic materials
3 acc. VDE 0580
Insulation class
IP 40, IP 65 by
ying leads (without hand lever)
Protection class
ca. 1000/min
Cycling rate
with SPS possible
Electrical control
Measurement at the valve outlet, at 20!C and 6 bar inlet
Response times
pressure, according to DIN ISO 12238:
ca. 8 ms (Standard)
Open
ca. 14 ms (Ex version)
(Pressure rise 0 to 10%)
ca. 10 ms (Standard)
Close
ca. 18 ms (Ex version)
(Pressure rise 100 to 90%)
Ordering chart, standard version (other versions on request)
All valves with mounting screws and flange seal; without plug connection (see Accessories)
1) 1)
2)
ce [mm]
ying leads
Circuit function Port connection Ori QNn value 1-2air [l/min] QNn value 2-3air [l/min] Pressure range[bar] Manual override Voltage[V] Nominal power [W]] Item no.rectangular plug Item no.with 500mm length
2
12 182 862215 686
C
3)
with 0.8
Brkert ange0.67.08.50-1
24181367202 578
3
1
3)
Lateral ange0.66.07.50-10
with240.8175682214 196
3/2-way valve NC
D
2
Brkert ang 7.08.5 175653
0.6 0-10with240.8
3
1
Lateral ange6.07.5179098
3/2-way valve NO
Ordering chart, Ex version
Approval acc. to II 2G Ex ia IIC T4 T5 T6 PTB01 ATEX 2048 and IECx PTB 07.0063
All valves with rectangular plug, mounting screws and flange seal; without plug connection (see Accessories)
1)
]
1)
2)
ce [mm]
Circuit function Port connection Ori QNn value 1-2 air [l/min] QNn value 2-3 air [l/min] Pressure range[bar] Manual override Resistance at 20oC +/-4% [ Minimumholding current [mA] Item no.
Brkert Flange0.678.50-7yes32029175 65
C
2
Brkert Flange0.678.50-7yes51023175 65
3
1
3/2-way valve NC
Brkert Flange0.678.50-7yes32029183 55
D
2
3
1
3/2-Wege-Ventil NO
1)
QNn value air [l/min]: Measurement with +20!C, 6 bar pressure on the valve input and 1 bar pressure differentia
Ordering chart for accessories
Device Character-istics Item no.
Brkert ange
Single manifoldfor Brkert ange under M3639 87
Manifold 2-foldfor Brkert ange, M5641 91
Manifold 4-foldfor Brkert ange, M5641 91
Manifold 6-foldfor Brkert ange, M5639 87
Blanking plate kitfor multiple manifolds, Brkert ange645 51
Lateral ange
Single manifoldfor lateral ange, M3639 234
Manifold 2-foldfor lateral ange, M5641 915
Manifold 4-foldfor lateral ange, M5641 916
Manifold 6-foldfor lateral ange, M5639 235
Blanking plate kitfor multiple manifolds, lateral ange645 513
Tube connector plug
Screw in tting connectionBrass, straight, for M3 and tube - 4 mm782 534
Screw in tting connectionBrass, straight, for M5 and tube - 4 mm787 810
Cable plug, Type 2505
Type 2505, cable version Item no.
with 3m 133 486
with 5m 167 494
Type 2505, ying lead version Item no.
with 300 mm 644 068
with 600 mm 162 144
AB Item no.
2 valves22 641 915
4 valves4422 641 916
6 valves6644 639 235
8 valves8866 672 676
Blanking plate kit 645 513
ABItem no.
2 valves22C641 91
4 valves4422641 912
6 valves6644639 874
Blanking plate kit645 512
