DD Worm Acme Screw Gear Electric Cylinders

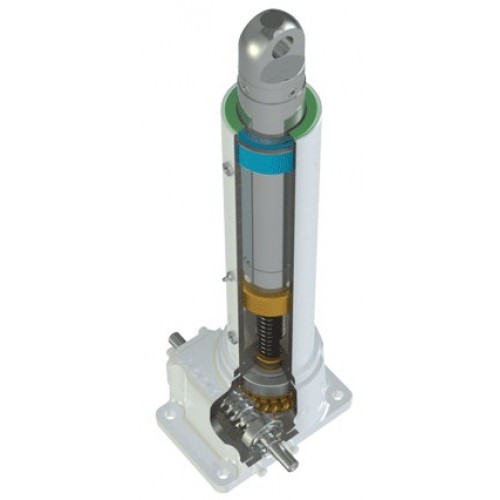

DD worm gear driven Electric Cylinders incorporate an alloy steel worm which drives a high strength bronze worm gear (drive sleeve). The worm shaft is supported on anti-friction tapered roller bearings with external seals provided to prevent loss of lubrication (sealed radial ball bearings on the Series 5 and Series 10 units). The drive sleeve is supported on anti-friction tapered roller or ball thrust bearings. The electric cylinder housing is made of ductile iron and proportioned to support the rated capacity of the unit.



DD Electric Cylinders are ruggedly designed and produced in standard models with thrust capacities from 500 lbs. to 40,000 lbs. DD Electric Cylinders feature a single reduction and are intended for use in industrial environments. They feature ground and hard chrome plated actuator tubes. The exterior surfaces feature industrial enamel paint. Epoxy paint is available on request.

PowerAc™ Acme screws are made from 4140 Alloy steel with a black oxide finish with a 2C (Centralizing) thread form. Nook acme nut material has been selected for low friction, minimum wear, long life, and clean operations.

These cylinders may be used individually or in multiple arrangements. Each Electric Cylinder is built to specification. For outdoor application of DD Electric Cylinders, contact Nook Engineering for recommended alterations.

Details
Product	Gear Ratio	Max Capacity [lb]	Input Turns Per Inch Of Travel	Torque To Raise 1 lb. [in-lb]	Max HP [hp]
DD-55-A5
	5:1	1000	25	0.021	0.33
DD-55-A8
	5:1	1000	40	0.017	0.33
DD-55-A10
	5:1	1000	50	0.014	0.33
DD-520-A5
	20:1	1000	100	0.009	0.16
DD-520-A8
	20:1	1000	160	0.007	0.16
DD-520-A10
	20:1	1000	200	0.006	0.16
DD-105-A5
	5:1	2000	25	0.0225	0.5
DD-1020-A5
	20:1	2000	100	0.0125	0.25
DD-256-A2
	6:1	5000	12	0.0334	2
DD-256-A4
	6:1	5000	24	0.0252	2
DD-2512-A4
	12:1	5000	48	0.0148	1.5
DD-2524-A4
	24:1	5000	96	0.0106	0.5
DD-306-A4
	6:1	6000	24	0.0271	2
DD-3012-A4
	12:1	6000	48	0.0165	1.5
DD-3024-A4
	24:1	6000	96	0.0118	0.5
DD-506-A2
	6:1	10000	12	0.0437	3
DD-506-A3
	6:1	10000	16	0.0376	3
DD-5024-A3
	24:1	10000	64	0.0144	0.75
DD-1008-A2
	8:1	20000	16	0.0377	5
DD-1008-A4
	8:1	20000	32	0.0314	5
DD-10024-A2
	24:1	20000	48	0.0192	1.5
DD-2008-A2
	8:1	40000	16	0.0435	7.5
DD-2008-A3
	8:1	40000	24	0.0394	7.5
DD-20024-A2
	24:1	40000	48	0.0218	2.5
