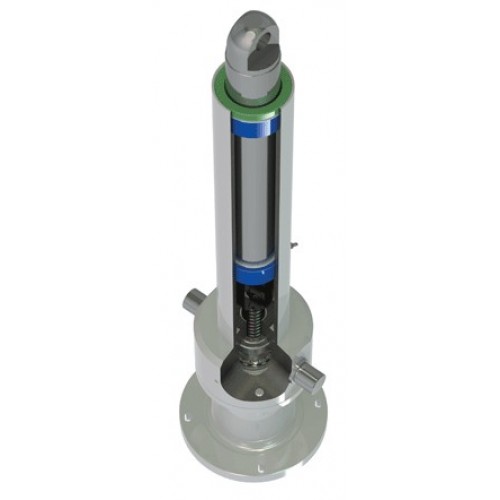

ILA Electric Cylinders

ILA Electric Cylinders have many of the same benefits of DD and RAD Electric Cylinders, including a rugged design and capacities from 1,000 lb to 21,000 lb. ILA Electric Cylinders incorporate a direct drive without an internal reduction. The screw drive is directly coupled with an external speed reducer, stepper motor, servo motor, or NEMA mounted motors. ILA Electric Cylinders can be supplied for outdoor applications. Each Electric Cylinder is built to specification.



ILA Electric Cylinders are ruggedly designed and produced in standard models with thrust capacities from 1,000 lbs. to 21,000 lbs. ILA Electric Cylinders feature a direct drive and are intended for use in industrial environments. They feature ground and hard chrome plated actuator tubes. The exterior surfaces feature industrial enamel paint. Epoxy paint is available on request.

Nook Industries ball screws are made of high strength materials. The screw shaft is made of medium carbon induction hardenable alloy steel. Ball nuts are manufactured from high grade bearing steel. Both the ball screw and nuts are heat-treated to a surface hardness not less than 56 HRC with a case depth suitably chosen to carry the load.

These cylinders may be used individually or in multiple arrangements. Each Electric Cylinder is built to specification. For outdoor application of ILA Electric Cylinders, contact Nook Engineering for recommended alterations.

Custom motor or reducer mounts are available.

	Performance Specifications			Details
Product	Maximum Travel Rate [in/min]	Dynamic Capacity [lb]	Maximum Input Torque [in-lb]	Ball Screw	Input Turns per Inch Of Travel	Torque Per Lb. [in-lb]	Max Capacity [lb]
ILA-5 HD
	951	1000	35	0631-0200 SRT	5	0.035	1000
ILA-5 HL
	2377	1000	88	0631-0500 SRT	2	0.088	1000
ILA-10 HD
	800	2200	77	0750-0200 SRT	5	0.035	2200
ILA-10 HL
	2000	1200	105	0750-0500 SRT	2	0.088	1200
ILA-25 HD
	750	3500	154	1000-0250 SRT	4	0.044	3500
ILA-25 HL
	3000	2200	390	1000-1000 SRT	1	0.177	2200
ILA-25 ML
	1500	3500	308	1000-0500 SRT	2	0.088	3500
ILA-100 HD
	946	9000	756	1500-0473 SRT	2.11	0.084	9000
ILA-100 SL
	3750	2500	830	1500-1875 SRT	0.53	0.332	2500
ILA-100 HL
	2000	4600	814	1500-1000 SRT	1	0.177	4600
ILA-200 HD
	667	21000	1848	2250-0500 SRT	2	0.088	21000
ILA-200 HL
	1333	11000	1947	2250-1000 SRT	1	0.177	11000
