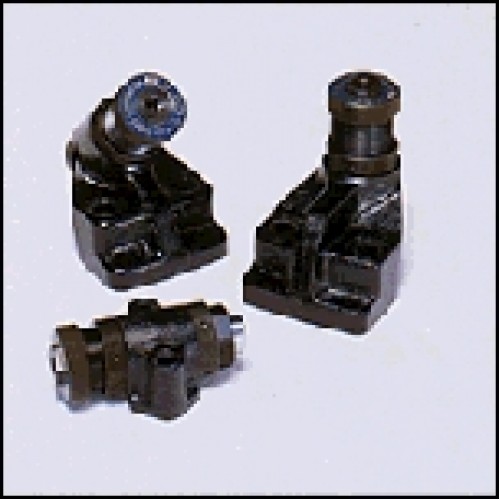

Taiyo Pneumatic Rotary High-Power System HSP3 Series il Pack Cylinder

In accordance with the theory of booster, low air pressure is converted to high oil pressure, and the force is taken outside by hydraulic piston to use as power. With booster and clamp head in one unit, it is small and lightweight for easy application.
With the cylindrical shape, both length and exterior dimension are small and it is also very compact.
As cylinder volume is extremely small, the air consumption can be minimized.
The mounting position can be adjusted with clamp ring, and the clamping will be performed quickly and completely with short stroke.

Specifications Click the icon as follows, to check the details.   COMMON ITEMS    Working Fluid Air  Lubrication Non-lubrication available  Working oil Cosmo Pure Safety 830 (Cosmo Oil Lubricants Co., Ltd.)  Temp. range +5 to +60 Celsius Degree   Model code Nominal Stroke Boosting Ratio Theoretical Clamping Force at Max. Air Pressure Usage Air Pressure Weight LE2-3603-03 3mm 7.84 3.73kN 0.1to 0.9MPa 0.7kg LE2-3606-03 6mm 0.9kg LE2-3609-03 9mm 1.0kg LE2-4803-08 3mm 8.16 8.34kN 0.15 to 0.9MPa 1.3kg LE2-4806-08 6mm 1.5kg LE2-4809-08 9mm 1.7kg LE2-4812-08 12mm 2.0kg LE2-4803-12 3mm 16 12.1kN 0.15 to 0.7MPa 1.4kg LE2-6006-18 6mm 11 18.0kN 0.15 to 0.9MPa 2.6kg LE2-6009-18 9mm 3.4kg LE2-6012-18 12mm 3.8kg LE2-6003-21 3mm 17.36 20.8kN 0.15 to 0.7MPa 2.5kg LE2-6006-21 6mm 3.7kg Value 1mm less than the nominal stroke shall be used as the effective stroke.   Theoretical Clamping Force Unit : kN Model Code Usage Air Pressure MPa 0.15 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 LE2-3603-03 0.392 0.637 1.08 1.52 1.96 2.40 2.84 3.29 3.73 LE2-3606-03 LE2-3609-03 LE2-4803-08 0.981 1.47 2.45 3.43 4.41 5.39 6.37 7.35 8.34 LE2-4806-08 LE2-4809-08 LE2-4812-08 LE2-4803-12 1.67 2.50 4.41 6.37 8.24 10.2 12.1 - - LE2-6006-18 2.60 3.63 5.69 7.75 9.81 11.9 13.9 16.0 18.0 LE2-6009-18 LE2-6012-18 LE2-6003-21 3.33 4.90 7.85 11.3 14.5 17.7 20.8 - - LE2-6006-21

Copyright(c)2004 TAIYO,LTD. All rights reserved.
