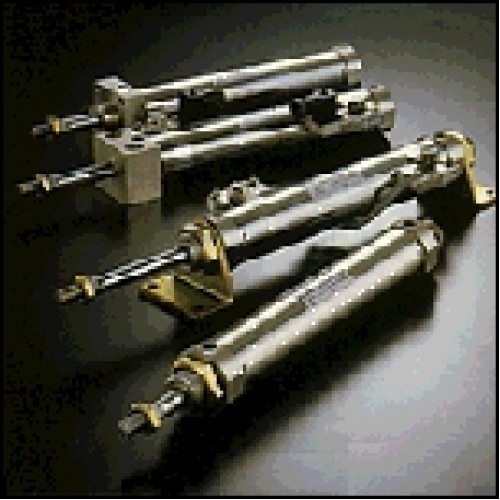

Taiyo Pneumatic Cylinder Space-saving General Purpose Round Body Design 10Z-2 Series Round Body Pneumatic Cylinder/Bore 20 to 40mm

Can be disassembled easily for maintenance.
Complete lineup non-rotating with block types are also available.
Uses hexagon rod construction so need no non-rotate guide.
Possible to add switches to all models after delivery.
Uses cushion mechanism to ease the adjustment and hold up with heavy use.

Product Lineup

Click the icon as follows, to check the details.

Type	Action Style	Models	Bore mm
Type	Action Style	Models	20	25	32	40
Standard	Double-acting Single-rod	Standard 10Z-2
		Switch set 10Z-2R
		Valve set 10Z-2V2
		SV set 10Z-2K2
	Double-acting Double-rod	Standard 10Z-2D
	Double-acting Double-rod	Switch set 10Z-2RD
	Single-acting Spring Return	Standard 10Z-2SR
	Single-acting Spring Return	Switch set 10Z-2RSR
	Single-acting Spring Push	Standard 10Z-2SH
	Single-acting Spring Push	Switch set 10Z-2RSH
Non-rotating	Double-acting Single-rod	Standard 10Z-2G	-		-
		Switch set 10Z-2RG	-		-
		Valve set 10Z-2V2G	-		-
		SV set 10Z-2K2G	-		-
	Single-acting Spring Return	Standard 10Z-2GSR	-		-
	Single-acting Spring Return	Switch set 10Z-2RGSR	-		-
	Single-acting Spring Push	Standard 10Z-2GSH	-		-
	Single-acting Spring Push	Switch set 10Z-2RGSH	-		-

Note)

Please click the Series Name when you need to review the details of each series.
