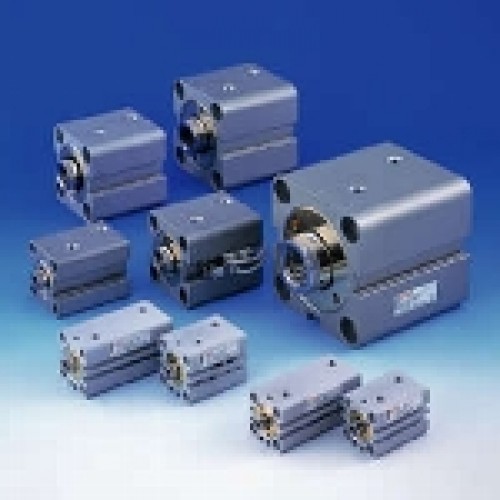

Taiyo Pneumatic Cylinder Space-saving 7W-1L Series Parallel Rod Cylinder with Safety Lock

Twin-rod type provides superior non-rotation accuracy and track position accuracy.
Double-piston structure with small space provides twice the output without requiring much installation space.
Possible to add switched to all models.
Could adjusting stroke by fixing a stop bolt.
Stroke adjusting range : ±2.5mm
Extensive models are prepared.

Product Lineup Click the icon as follows, to check the details. Bearing Action Style Model Bore Size mm 20 25 32 Slide bearing Rod Side with lock 7W-1L1 Standard·Switch set Head Side with lock 7W-1L2 Standard·Switch set

Note) Please click the Series Name when you need to review the details of each series.

Principle of Operation
