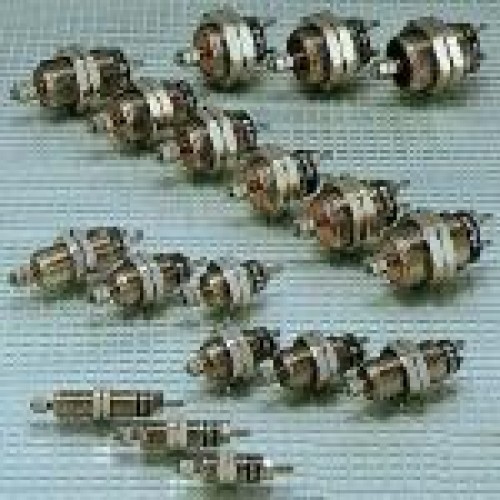

Taiyo Pneumatic Cylinder Space-saving Compact Pneumatic Cylinder 7N-1 Series Body Screwed Cylinder/Fully Threaded Body

Taiyo Pneumatic Cylinder Space-saving Compact Pneumatic Cylinder 7N-1 Series Body Screwed Cylinder/Fully Threaded Body

Easy-to-use designed and double-acting, single-acting (spring-return) are prepared.
Compact designed for space saving.
Outer screwed body designed can easily and directly fix to the jig or panel.
Need no lubrication

Product Lineup Click the icon as follows, to check the details.
Action Style Model Bore size Stroke mm
5 10 15
Double-acting Single-rod 7N-1D 6 7N-1D6X5 7N-1D6X10 7N-1D6X15
10 7N-1D10X5 7N-1D10X10 7N-1D10X15
16 7N-1D16X5 7N-1D16X10 7N-1D16X15
Single-acting Spring-return 7N-1S 6 7N-1S6X5 7N-1S6X10 7N-1S6X15
10 7N-1S10X5 7N-1S10X10 7N-1S10X15
16 7N-1S16X5 7N-1S16X10 7N-1S16X15
Specifications
Action Style Double-acting Single-rod Single-acting Spring-return
Model 7N-1D 7N-1S
Available Bores(mm)mm 6·10·16
Working Fluid Air
Lubrication Not necessary(But possible)
Operating Pressure Range 6:0.15∼0.7MPa
10·16:0.1∼0.7MPa		 6:0.25∼0.7MPa
10·16:0.15∼0.7MPa
Proof Test Pressure 1MPa
Operating Speed Range +5∼+60ºC
Structure of Cushioning None
Tolerance of Thread JIS 6g/6H
Stroke Tolerance +0.8∼-0.2mm
Mounting Style Outer screwed mounting (with 2 nuts)

Theoretical Cylinder Output List Unit: N
Bore
mm		 Piston area
mm2		 Operating pressure MPa
0.2 0.3 0.4 0.5 0.6 0.7
6 Extend 28 5.6 8.4 11.2 14.0 16.8 19.6
Retract 21 4.2 6.3 8.4 10.5 12.6 14.7
10 Extend 78 15.6 23.4 31.2 39.0 46.8 54.6
Retract 58 11.6 17.4 23.2 29.0 34.8 40.6
16 Extend 201 40.2 60.3 80.4 100.5 120.6 140.7
Retract 172 34.4 51.6 68.8 86.0 103.2 120.4

Theoretical Cylinder Output List Unit: N
Bore
mm		 Available Stroke mm
6 10 16
Initial load 1.86 2.94 5.88
End load 3.92 5.88 11.8

Mass List Unit: g
Bore
mm		 Piston area
mm2		 Stroke mm
5 10 15
6 Double-acting 34 42 50
Single-acting 10 15 18
10 Double-acting 82 94 106
Single-acting 30 37 42
16 Double-acting 126 138 155
Single-acting 86 93 100

Example of use
