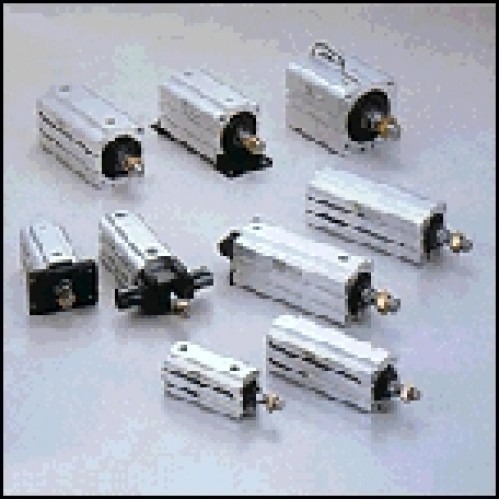

Taiyo Pneumatic Cylinder Space-saving 0S-5 Series Compact Pneumatic Cylinder/Response to Long Stroke

Available stroke is lengthen until 300mm.
To eliminate the penetration of dust, a heavy duty scraper is adopted.
The position of port can choose either at lateral or rear depending on the mounting space.
Various of mounting are prepared for different applications.
Body embedded type magnetic proximity switch is adopted.

Product Lineup Click the icon as follows, to check the details. Port Position Mounting Style Bore Size mm 32 40 50 63 80 100 125 Lateral Port SD MA LB FA FB CA CB TA TB Rear Port SP MP LP FP TP

Specifications Port Position Lateral port Rear port Available Bores(mm) 32·40·50·63· 80·100·125 32·40·50·63 Mounting Style SD·MA·LB·FA·FB·CA·CB·TA·TB SP·MP·LP·FP·TP Working Fluid Air Lubrication Not necessary(But possible) Operating Pressure Range 0.05∼1MPa Proof Test Pressure 1.5MPa Operating Speed Range 50∼500mm/s Temperature Range -10∼+70ºC(But do not use when frozen) Structure of Cushioning With cushion pad Tolerance of Thread JIS 6H/6g Stroke Tolerance +1.0∼0mm Accessories Rod End Attachments Rod End Eye (T-End)·Rod End Eye with Spherical Bearing (S-End)·Rod End Clevis (Y-End) with pin·Floating Joint (F-End) Bracket TA(TP)·TB BracketACB Bracket   Standard Stroke and Stroke Limit Unit: mm Stroke 25 50 75 100 125 150 200 250 300 Stroke limit 32 - - 300 40 - - 300 50 - - 300 63 400 80 400 100 400 125 400
