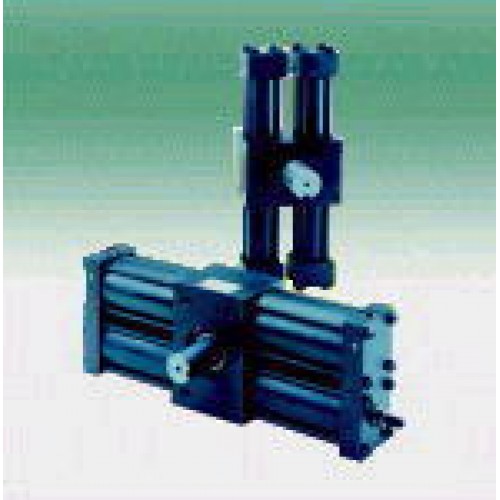

Taiyo Rotary Actuator HTR Series 21Mpa Rack and Pinion Type Rotary Actuator

Adoption of a high load capability tapered roller bearings.
Adoption of a high strength ductile iron or steel housing can response to high output torque.
Standardized port type to BSPP and Rc ports also available.
High durability with PTFE wearing and molythane piston seals.
Adoption of a chrome alloy steel rack and pinion gear set also contribute to high durability.

The HTR Series actuators have been successfully employed in automotive plant production machinery; machine tool equipment; plastics and rubber processing machinery; basic metals production machinery and in material handling machinery.   The HTR Series actuator can be employed as an integral machine component. For example, the actuator can simultaneously transmit torque and support the line shaft or the load. Such an arrangement eliminates one set of external support bearings.   For example: the optional cushions can be employed to decelerate an external load. This feature eliminates the need for an external deceleration device such as a shock absorber or a brake.

Common Specifications

Proof Test Pressure 21MPa (HTR22 & 45 is 14MPa) Standard rotations 90‹A180‹A360‹ Rotational tolerance Min. Working Pressure 0.5MPa Mounting orientation unrestricted Operating temperature range Urethan seals:-10ºC∼+80ºC Fluoric rubber seals:0ºC∼+100ºC Special nitrile seals:0ºC∼+80ºC Standard timing Keyway in 12:00 position at midstroke.

Single Rack

Model	Actual Output Torque	Max. Angular Backlash, Minutes	Standard Rotation Degrees	Displacement	Mass. kg	Price
HTR.9	45Nm (Pressure9.3MPa)	30	90	9.3cm3	5kg	Inquiry
			180º	19cm3	6kg	Inquiry
			360º	37cm3	9kg	Inquiry
HTR3.7	177Nm (Pressure9.1MPa)	30	90º	40cm3	13kg	Inquiry
			180º	80cm3	14kg	Inquiry
			360º	159cm3	17kg	Inquiry
HTR5	305Nm (Pressure11.3MPa)	30	90º	51cm3	17kg	Inquiry
			180º	102cm3	18kg	Inquiry
			360º	205cm3	22kg	Inquiry
HTR15	1050Nm (Pressure13.0MPa)	15	90º	145cm3	25kg	Inquiry
			180º	291cm3	27kg	Inquiry
			360º	582cm3	32kg	Inquiry
HTR22	1050Nm (Pressure8.6MPa)	15	90º	227cm3	27kg	Inquiry
			180º	455cm3	30kg	Inquiry
			360º	910cm3	36kg	Inquiry
HTR75	2825Nm (Pressure7.0MPa)	15	90º	754cm3	90kg	Inquiry
			180º	1508cm3	100kg	Inquiry
			360º	3016cm3	120kg	Inquiry
HTR300	14125Nm (Pressure8.7MPa)	10	90º	2913cm3	345kg	Inquiry
			180º	5827cm3	382kg	Inquiry
			360º	11653cm3	414kg	Inquiry

Note1) Use the durability ratings for high production duty of 1 million cycles and/or high speed applications   (180º in less than three seconds or more than one cycle per minute). Note2) To minimize backlash in the actuator, order a double rack a few degrees longer and add stroke adjusters.
Double Rack
Model Actual Output Torque Max. Angular Backlash, Minutes Standard Rotation degrees Displacement Mass. kg Price HTR1.8 96Nm (Pressure9.9MPa) 30 90º 19cm3 7kg Inquiry 180º 37cm3 9kg Inquiry 360º 74cm3 11kg Inquiry HTR7.5 376Nm (Pressure9.4MPa) 30 90º 79cm3 16kg Inquiry 180º 159cm3 19kg Inquiry 360º 318cm3 24kg Inquiry HTR10 646Nm (Pressure12.0MPa) 30 90º 102cm3 20kg Inquiry 180º 205cm3 25kg Inquiry 360º 410cm3 30kg Inquiry HTR30 2226Nm (Pressure13.7MPa) 15 90º 291cm3 40kg Inquiry 180º 582cm3 44kg Inquiry 360º 1164cm3 53kg Inquiry HTR45 2226Nm (Pressure9.2MPa) 15 90º 455cm3 45kg Inquiry 180º 910cm3 49kg Inquiry 360º 1819cm3 61kg Inquiry HTR150 5989Nm (Pressure7.4MPa) 15/TD> 90º 1508cm3 146kg Inquiry 180º 3016cm3 167kg Inquiry 360º 6032cm3 206kg Inquiry HTR600 29945Nm (Pressure9.2MPa) 10 90º 5827cm3 505kg Inquiry 180º 11653cm3 573kg Inquiry 360º 23290cm3 709kg Inquiry
