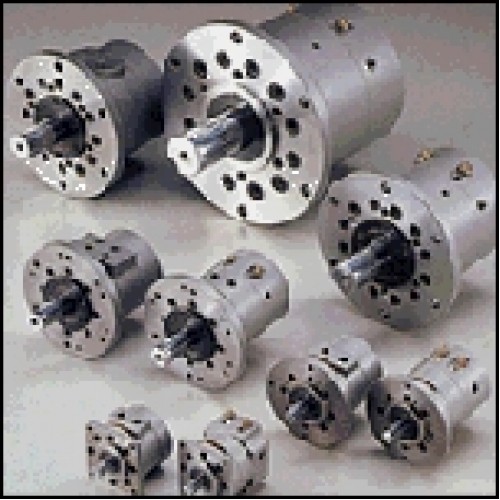

Taiyo Rotary Actuator 70RV Series 7Mpa Vane Type Rotary Actuator

Write a review

Standardized the single-vane type and double-vane type.
The single vane type is available to fixed with cushion.
Standardized the parallel key (one-side round) at the end of sharf.

Product Lineup

Click the button below to check the details.

Series Variation	Standard		with Cushion
Series Variation	Single	Double	Single
70RV10	70RV10S-270	70RV10D-90	70RV10SC-180	70RV10SC-90
70RV15	70RV15S-270	70RV15D-90	70RV15SC-180	70RV15SC-90
70RV20	70RV20S-270	70RV20D-90	70RV20SC-180	70RV20SC-90
70RV30	70RV30S-270	70RV30D-90	70RV30SC-180	70RV30SC-90
70RV100	70RV100S-270	70RV100D-90	70RV100SC-180	70RV100SC-90
70RV200	70RV200S-270	70RV200D-90	70RV200SC-180	70RV200SC-90
70RV400	70RV400S-270	70RV400D-90	70RV400SC-180	70RV400SC-90
70RV700	70RV700S-270	70RV700D-90	70RV700SC-180	70RV700SC-90

Note)

Please click the Series Name when you need to review the details of each series.

Specifications

Common Items

This product is designed for only indoor use.

Do not use it in a place attended with much dust, water drops, oil drops, vibration or corrosive environment.

Hydraulic pressure that is generated in cylinder due to the inertia of load shall be set at less than the maximum allowable pressure.

Standard type

with Cushion

Available Working Fluid

Working Fluid
Petroleum-based Fluid	Water-Glycol Fluid	Phosphate-Ester Fluid	Water in Oil Fluid	Oil in Water Fluid

The

-marked items are applicable, while the

-marked items are inapplicable.

Nominal Pressure

Min. WorkingPressure

Proof Test Pressure

Working Fluid Temperature

0∼+60ºC(But do not use when frozen)

Working Fluid

Petroleum-based fluid recommended ISO VG32∼56(ISO viscosity grade)
(For other working oil, refer to the table of working oil adaptability.)
