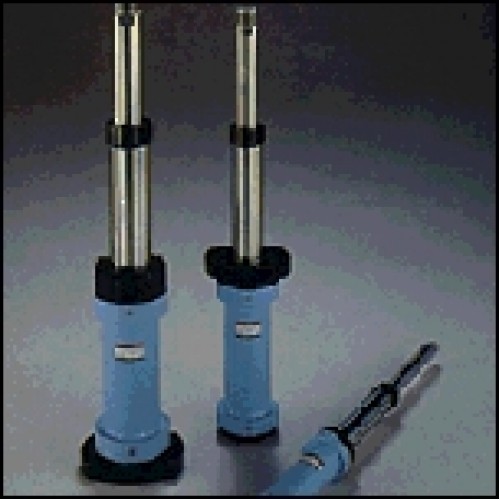

Taiyo Hydraulic Cylinder Telesscopic TTC-1 Series Single-acting Uniform Type 2 Stage Telescopic Cylinder
|
| Model | 15Œ` | 31Œ` | 47Œ` | 61Œ` | 77Œ` | 100Œ` | 127Œ` | 173Œ` | 245Œ` | |
| Available Bores(mm) mm |  63 |
90 |
110 |
125 |
140 |
160 |
180 |
210 |
250 |
|
| Standard Stroke »ì”ÍˆÍ |
50∼ 2900mm |
50∼ 4400mm |
50∼ 4800mm |
50∼ 5100mm |
50∼ 5400mm |
50∼ 5900mm |
50∼ 6800mm |
50∼ 7700mm |
50∼ 8900mm |
|
| Mounting Style | LA·FA·FB·CA·TA·TBŒ` | |||||||||
| Nominal Pressure | 10MPa | |||||||||
| Max. AllowablePressure | Head Side:10MPa | |||||||||
| Proof Test Pressure | Head Side:14MPa | |||||||||
| Min. WorkingPressure | 0.3MPa | |||||||||
| Operating Speed Range | 20∼333mm/s | 20∼300mm/s | 210∼280mm/s | 20∼250mm/s | 20∼220mm/s | |||||
| Temperature Range | ŽüˆÍ‰·“x:-10∼+50ºC –û‰·:-5∼+80ºC(But do not use when frozen) | |||||||||
| Structure of Cushioning | —¼‘¤ŒÅ’èƒNƒbƒVƒ‡ƒ“ | |||||||||
| Working Fluid | Petroleum-based fluid (For other working oil, refer to the table of working oil adaptability.) |
|||||||||
| Tolerance of Thread | JIS 6g/6H | |||||||||
| Stroke Tolerance |  |
|||||||||
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
