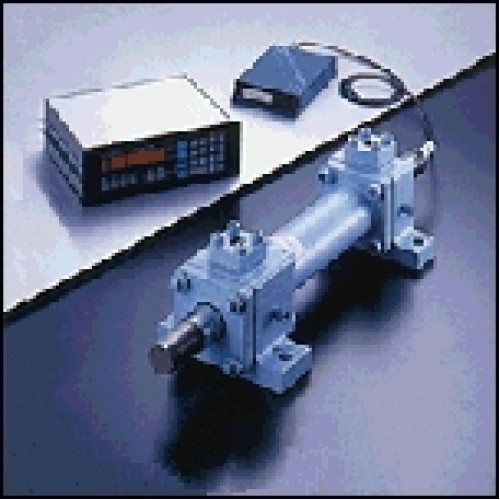

Taiyo Hydraulic Cylinder Position Detecting Absolute Method 140MT-3 Series 14Mpa Position Sensing Mill Type Hydraulic Cylinder

Special designed for heavy duty machinery such as steelmaking equipment.
High-strength designed for resistes pressure surges, vibrations, and impact.
High-performance cylinder which manufactured with great care regarding processing accuracy, surface treatment, seal packing materials, etc.
High-accuracy technical designed for special applications.
Conform to Japan Fluid-Power Association (JFPA) JOHS-110 standard.

Product Lineup Click the icon as follows, to check the details.

Action Style Bore Size mm 50 63 80 100 125 140 160 180 200 224 250 Double-acting Single-rod

Specifications

Action Style		Double-acting Single-rod
Available Bores(mm)		40·50·63·85·100· 125·140	160·180·200·224·250
Standard Stroke		100∼1500mm	100∼2000mm
Mounting Style		SD·LA·FA·TC
Nominal Pressure		14MPa
Max. AllowablePressure		23MPa
Proof Test Pressure		28MPa
Max. Working Pressure		500mm/s
Min. Working Pressure		10mm/s	20mm/s
Temperature Range		-5∼+65ºC(But do not use when frozen)
Structure of Cushioning		Metal fitting type
Working Fluid		Petroleum-based fluid (For other working oil, refer to the table of working oil adaptability.)
Tolerance of Thread		JIS 6g

Note1)   Hydraulic pressure that is generated in cylinder due to the inertia of load shall be set at less than the maximum allowable pressure.



Positioning Sensor Specifications

Output Method		Analog Method	Digital Method
Sensor/Controller Name		GYcRP/GYFC-R9	GYcRP/GYDC-03A
Accuracy	Linearity	0.05% FS and below TYP
	Resolution Ability	0.01% FS and below	0.1 or 0.01mm
	Repeatability	0.01% FS and below
	Temperature Character	Probe:0.005mm/ºC+10ppm FS/ºC and below Controller/±20ppm FS/ºC
Output	Voltage Output	0∼+10VDC	Output Level	Open collector output or TTL output
		Load Current Max50mA	Output Logic	Positive logic or Negative logic
		Load Resistance Min200Ω
	Current Output	4∼20mA	Output Code	Binary output(19bit) BCD output(4-3/4 digit) either-or
		Load Resistance MaX500Ω
	Others	Error output(Standard)ASpeed output(Option)
Scanning frequency		1kHz(Standard)
Power Supply	Temperature Range	Probe:-5ºC∼+65ºC (But do not use when frozen) Controller:0ºC∼+60ºC (But do not use when frozen)
	Storage Temperature	-40ºC∼+80ºC (But do not use when frozen)
	Proof Test Pressure	35MPa connecting parts
	Vibration Proof	58.8m/s2(or 40Hz2mmpp)
	Crash Proof	196m/s26mS
	Protect Structure	IP65(IEC Standard)
