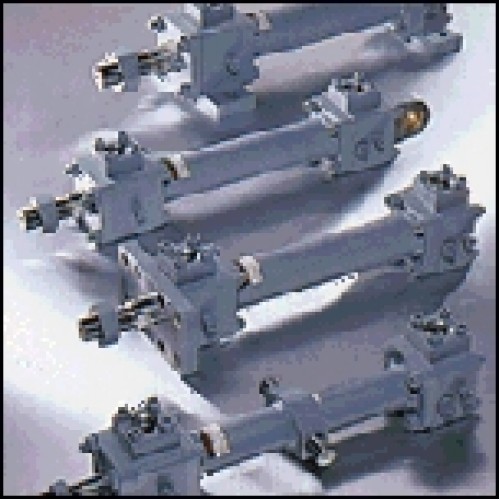

Taiyo Hydraulic Cylinder Mill Type 140M-3 Series 14Mpa Mill Type Hydraulic Cylinder

Special designed for heavy duty machinery such as steelmaking equipment.
High-strength designed for resistes pressure surges, vibrations, and impact.
High-performance cylinder which manufactured with great care regarding processing accuracy, surface treatment, seal packing materials, etc.
High-accuracy technical designed for special applications.
Conform to Japan Fluid-Power Association (JFPA) JOHS-110 standard.

Specifications

Action Style		Double-acting Single-rod
Available Bore		40·50·63·85·100·125·140·160·180·200·224·250
Mounting Style		SD·LA·FA·FB·CA·CB(with Pin)·TC
Norminal Pressure		14MPa
Max. Working Pressure		23MPa
Proof Test Pressure		28MPa
Min. Working Pressure		40∼140:0.3MPa 160∼250:0.5MPa
Operating Speed Range		40∼140:10∼500mm/s 160∼250:20∼500mm/s
Operating Temperature		-10∼+80 Celsius Degree(But do not use when frozen)
Cushion Mechanism		Metal fitting type
Painting Color		Munsell 7.5BG 5.5/2.5
Working Fluid		Petroleum-based fluid (For other working oil, refer to the table of working oil adaptability.)
Thread Tolerance		JIS 6g/6H
Stroke Tolerance
Accessories	Boots	Standard:Nylon tarpaulin Semi-standard:Chloroprene·Conex
	Rod End Attachment	Rod End Spherical Eye(S type)·Rod End Clevis(Y type)
	Others	Rod End Lock Nut

Note1)   Hydraulic pressure that is generated in cylinder due to the inertia of load shall be set at less than the maximum allowable pressure. Note2) Conex of boots is the registered trade mark of Teijin,Ltd.



Allowable Fluid, Seal Material

Seal Material	Action Style
	Petroleum-based Fluid	Water-Glycol Fluid	Phosphate-Ester Fluid	Water in Oil Fluid	Oil in Water Fluid
2:Urethane rubber
1:Nitrile rubber
3:Fluoric rubber

The -marked items are applicable,while the -marked items are inapplicabe. In the case of -marked, please contact to TAIYO service network.
-marked items are the recommended packing materials in case of giving the first priority to abrasion resistance.
