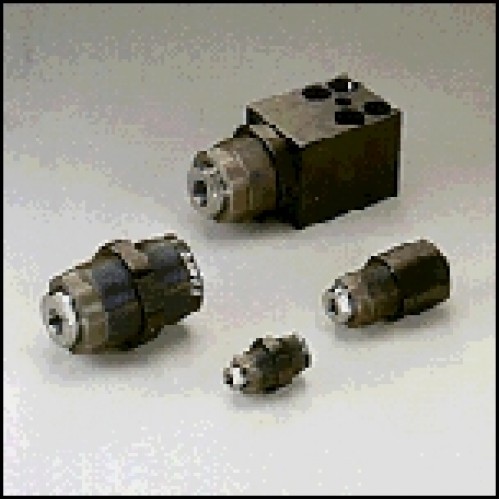

Taiyo Hydraulic Cylinder Space-saving 210N-1 Series Hydraulic Body Screwed Cylinder/Fully Screwed Type

21MPa Hydraulic Cylinder of all screw type.
Conducting screw cutting in the body circumference.
Conducting female processing at the end of the rod in order to install
Standardizing Air vent mechanism in order to gain certain clamp force.

Product Lineup Click the icon as follows, to check the details. Action Style Bore(mm) Stroke(mm) 5 10 20 Basic 12 - 20 - 32 - Block 12 - 20 - 32 - With Cap 12 - 20 - 32 -

Specification

Structure		Single-acting Spring Return
Aailable Bores(mm)		12,20,32
Cylinder Stroke(mm)		5/10/20
Norminal Pressure		21MPa
Max. Allowable Pressure		25MPa
Proof Test Pressure		31.5MPa
Min. Working Pressure		0.5MPa
Operating Speed Range		12 : 100mm/s or under 20/32 : 200mm/s or under
Operating Temperature		-10 to +80 Celsius Degree(But do not use when frozen)
Cushion Mechanism		None
Working Fluid		Petroleum-based fluid (For other working oil, refer to the table of working oil adaptability.)
Thread Tolerance		JIS 6g/6H
Stroke Tolerance		0 to +1.0mm
Mounting Style		All Screw Type in circumference(With a nut)

Note)   Hydraulic pressure that is generated in cylinder due to the inertia of load shall be set at less than the maximum allowable pressure.



Allowable Fluid, Seal Material

Seal Material	Allowable Fluid
	Petroleum-based Fluid	Water-Glycol Fluid	Phosphate-Ester Fluid	Water in Oil Fluid	Oil in Water Fluid
Nitrile rubber

Note)The -marked items are applocable,while the -marked items are inapplicabe.
