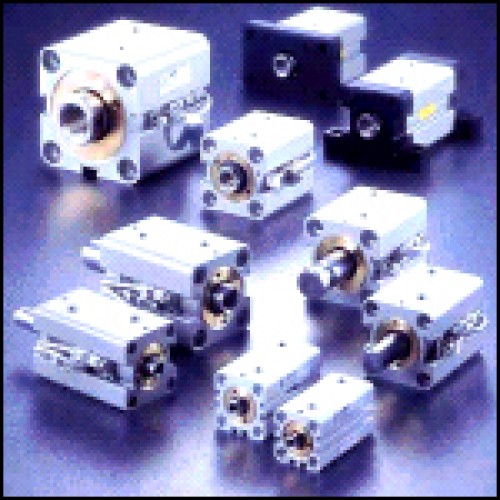

Taiyo Hydraulic Cylinder Space-saving HQS2 Series 10,16Mpa Compact Hydraulic Cylinder/Alminum Body

Compact design and light weight which realized by applied Special Aluminum Alloy to the cylinder body.
Enhanced your cost performance by selection depend on frequency of use and operating pressure.
AX, AZ type switches are common for the most of our standard product.
The material of gland bush is friction-resistant Special Copper Alloy.

Product Lineup
General Purpose Type	Click the button below for details.

Structure	Series	Mounting Type	Rod End Type	Bore(mm)
				20	25	32	40	50	63	80	100
Double-acting Single-rod	Standard Type HQS2	SD	Female
			Male
		LD, FA, FB	Female
			Male
	Switch Set HQS2R	SD	Female
			Male
		LD, FA, FB	Female
			Male
Double-acting Double-rod	Standard Type HQS2D	SD	Female
			Male
		LD, FA	Female
			Male
	Switch Set HQS2RD	SD	Female
			Male
		LD, FA	Female
			Male

Note) Please click the Series Name when you need to review the details of each series.
Cutting Fluid Proof Type	Click the button below for details.
Structure Series Mounting Type Rod End Type Bore(mm) 20 25 32 40 50 63 80 100 Double-acting Single-rod Standard Type HQSW2 SD Female - - Male - - LD, FA, FB Female - - Male - - Switch Set HQSW2R SD Female - - Male - - LD, FA, FB Female - - Male - Write a review Your Name: Your Review: Note: HTML is not translated! Rating: Bad           Good Enter the code in the box below: Continue News and Information About Us Contact Us Site Map Global Trade Leads - Import & Export on our award-winning International Trade Site
