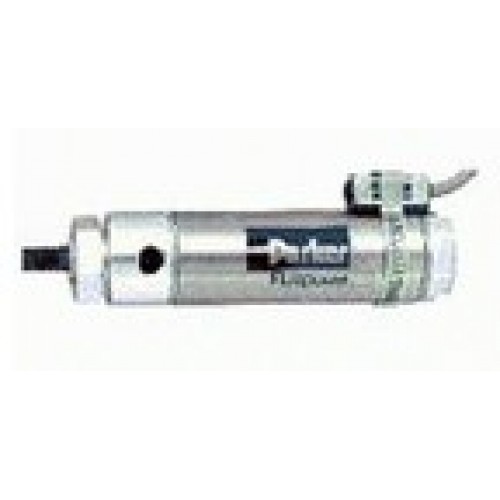

Parker ROUND BODY PNEUMATIC CYLINDERS SRM STAINLESS STEEL PNEUMATIC W/ PISTON SENSING
- Construction: Crimped Round Body, Stainless Steel Tube, Aluminum End Caps, Non-Repairable
- Magnetic Piston Sensing Standard
- Bore Sizes: 9/16, , 1-1/16, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2
- Standards: Industry Interchangeable
- Strokes: 32, Bore Size & Mounting Style Dependant
- Ports: NPTF Ports Standard
- Piston Rod Diameters: .188, .250, .312, .437, .50, .625
- Piston Rod Material: Stainless Steel (Up to 1.5 Bore), Carbon Steel (1.75 2-1/2 Bore)
- Piston Rod Ends: Standard Male. Specials to order
- Operating Medium: Pneumatic, 250 PSI
- Standard Fluid: Filtered Air
- Single or double piston rod ends available
- Single Acting or Double Acting Versions
- Mounting styles: 24 Standard
- Standard Operating Temperature: +14F to + 140F
Additional Options:
--- Bumpers (standard on selected bore sizes)
--- Adjustable Cushions; head end, cap end, or both ends (Bore Size Dependant)
--- Rod Wiper
--- Full line of mounting accessories
--- Special Rod Ends Available
--- Extra or no Wrench Flats
--- Port Relocation (other than standard)
--- Private Label
Design Features:
--- 304 Stainless Steel Body with Aluminum End Caps for Corrosion Resistance
--- Rated for Non Lube Service
--- Rolled Rod Threads
--- Lip Seal Piston
--- Captive Cushion Design
--- Oil Impregnated Rod Bushing
