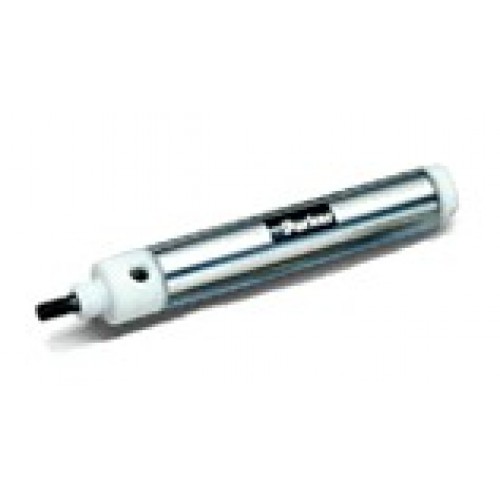

Parker ROUND BODY PNEUMATIC CYLINDERS SRD STAINLESS STEEL BODY/DELRIN(R) END CAPS

• Construction: Crimped Round Body, Stainless Steel Tube, Delrin (Acetal Resin) End Caps, Non-Repairable
• Bore Sizes: 9/16, , 1-1/16, 1-1/2, and 2
• Standards: Industry Interchangeable
• Strokes: 1 32, Bore Size & Mounting Style Dependant
• Ports: NPTF Ports Standard
• Piston Rod Diameters:.188, .250, .312, .437, .50, .625
• Piston Rod Material: Stainless Steel
• Piston Rod Ends: Standard Male, Specials to Order
• Operating Medium: Pneumatic, 100 PSI
• Standard Fluid: Filtered Air
• Single or double piston rod ends available
• Mounting styles: 3 Standard
• Standard Operating Temperature: 32F to + 140F

Additional Options:
--- Bumpers
--- Magnetic Piston Sensing
--- Rod Wiper
--- Full line of Stainless Steel Mounting Accessories
--- Special Rod Ends Available
--- Extra or no Wrench Flats
--- Port Relocation (other than standard)
--- Private Label

Design Features:
--- Unitized Construction
--- 304 Stainless Steel Body with Delrin Acetal Resin) End Caps for Corrosion Resistance
--- Rated for Non Lube Service
--- Rolled Rod Threads
--- Lip Seal Piston
--- Oil Impregnated Rod Bushing
--- Delrin is a registered trademark of Dupont
