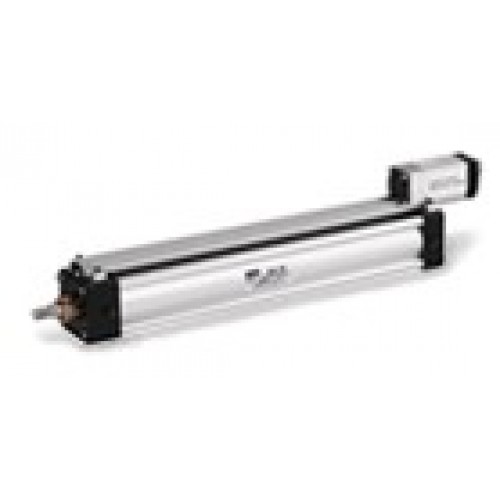

Parker RETIRED CYLINDERS 2MA WITH LINEAR POSITION SENSOR OPTION

• Magnetostrictive, Non Contact Sensing, Feedback
• Digital or Analog Output
• Position accuracy to .0002 (Electronics Interface Dependant)
• Construction: Extruded, anodized aluminum body, heads and caps 2 - 4 bore. Anodized aluminum barrel, heads and caps - tie rod design for 5 8 bore sizes.
• Bore Sizes: 2, 2-1/2, 3-1/4, 4, 5,6, and 8
• Standards: NFPA Interchangeable (ANSI/NFPA T.3.6.7R2-1996) for 2 8 bore sizes.
• Strokes: Available in any practical stroke length
• Piston Rod Diameters: 5/8 1
• Operating Medium: Pneumatic, 250-PSI. Optional 250-PSI Hydraulic Service (non-shock, and non-cushioned).
• Standard Fluid: Filtered Air
• Piston Rod Ends: 3 standard, specials to order
• Mounting styles: 11 standard
• Standard Operating Temperature: -10F to + 165F
• NPTF Ports Standard, Others Available Upon Request
• NPTF Ports Standard, Others Available Upon Request

  Additional Options:
  --- Adjustable Cushions head end, cap end, or both ends (Captive Design)
  --- Bumpers
  --- Bumper Seals
  Design Features:
  --- Corrosion Resistant Aluminum Construction Throughout
  --- Removable Rod Gland Assembly
  --- Self-Compensating Rod Wiper and Seal
  --- Rated for Non Lube Service
