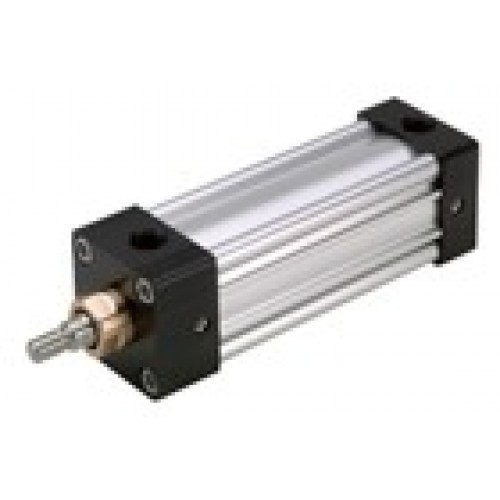

Parker NFPA AND TIE ROD PNEUMATIC CYLINDERS 4MA SERIES NFPA PNEUMATIC CYLINDER
Features:
- Anodized aluminum construction
- NFPA interchangeable
- Bore sizes 1.50", 2.00", 2.50", 3.25", 4.00", 5.00", 6.00", 8.00"
- Strokes available in any practical length
- Rod diameters 0.625", 1.000", 1.375", 1.750"
- Case-hardened, hard chrome plated carbon steel rod standard
- 4 standard rod end styles, specials available
- Single rod end or double rod ends
- Externally removable bronze alloy rod gland
- 20 standard mounting styles
- NPTF ports standard
- Adjustable cushions optional at either end or both ends
- Magnetic piston ring standard
- Non-lube (no lubrication required)
- Low friction
- 250 PSIG (17 Bar) maximum air service
- -10F to +165F (-23C to +74C) standard operating temperature range
- Accepts solid-state (PNP, NPN), Reed, NAMUR (intrinsically-safe), ATEX and Weld Immune sensors along body
- End-of stroke proximity sensors available
- Most sensors CE approved and UL listed
Options include:
- Hydraulic service to 400 PSIG (27 Bar) as 4ML
- High temperature version to +250F (+121C) with fluorocarbon seals
- Low temperature version to -50F (-46C) with low temperature seals
- Fluorocarbon rod seals only
- Bumpers and bumper piston seals
- SAE, BSPP, BSPT ports
- Stainless steel rods
- Metallic rod wiper gland assembly for rod adherents
- HI LOAD gland assembly for side load
- Air cylinder/valve combination (ACVB option)
- Continuous position sensing (LPSO option)
- Rod lock version (4MAJ)
- Guided version (HB family)
