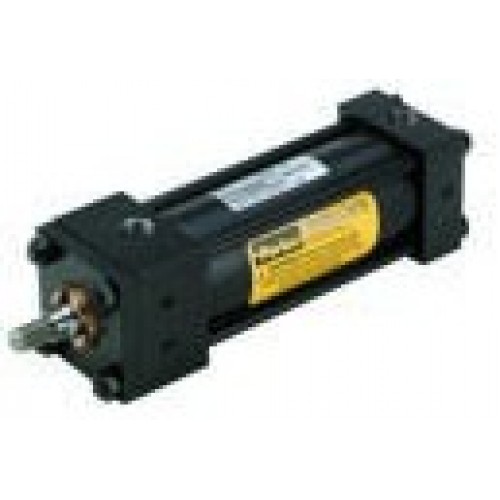

Parker NFPA AND TIE ROD PNEUMATIC CYLINDERS 2A HEAVY DUTY PNEUMATIC CYLINDERS
- Construction: Steel, Tie rod design; Repairable
- Standards: NFPA Heavy Duty Pneumatic, ANSI/(NFPA)T3.6.7R2-1996
- Bore Size: 1" through 14" (larger sizes available)
- Strokes: Available in any practical length
- Piston Rod Diameter: 1/2" to 5 1/2"
- Operating Medium: Filtered air
- Mounting Styles: 17 Standard
- Nominal Pressure: Up to 250 psi pneumatic service
- Standard Operating Temperature: -10F to +165F
- Optional High Temperature Option -10F to +250F
- Rod Ends: Three standard choices; specials to order
- Cushions: Optional at either or both ends
- NPTF ports are standard, others are available
Additional Information:
--- Removable "Jewel" Rod Gland Assembly with serrated rod seal
--- Double Lip Wiperseal
--- High Strength Tie Rods
--- Adjustable Floating Cushions
--- Chrome plated steel tubing cylinder body
--- Chrome plated, medium carbon steel, induction case hardened piston rods
--- Piston Rod Stud, High strength steel with rolled threads is furnished on smaller piston rods.
--- One piece nodular iron piston
--- Lip seals with backup washers are standard piston seals.
--- End of stroke sensors
| PRODUCT TYPE | Pneumatic Cylinder Tie Rod |
|---|---|
| PORTS | G - Metric |
| SEALS | FALSE |
| Configurator | YES |
| CAD Drawing Available | YES |
