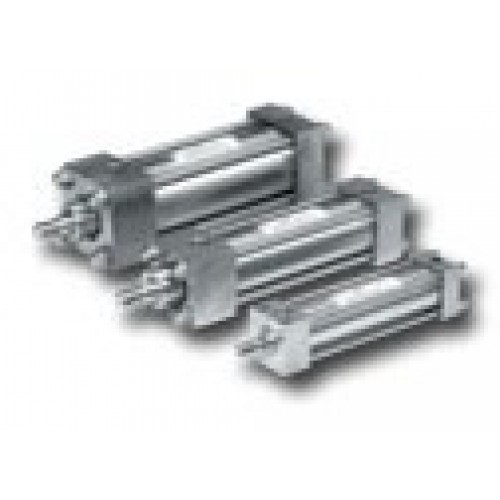

Parker NFPA AND TIE ROD PNEUMATIC CYLINDERS SA STAINLESS STEEL NFPA PNEUMATIC CYLINDERS
- Construction: Square Head and Cap, Tie Rod Design, Stainless Steel Heads, Caps, Cylinder Body, Tie Rods and Piston Rods
- Bore Sizes: 1-1/8, 1-1/2, 2, 2-1/2, 3-, 4, 5, 6, 8
- Standards: NFPA Interchangeable (ANSI/NFPA T.3.6.7R2-1996) 1-1/2 8
- Strokes: Available in any practical stroke length
- Ports: NPTF Ports are standards
- Piston Rod Diameters:3/8, , 5/8, 1, 1-3/8, and 1-3/4
- Operating Medium: Pneumatic, 250 PSI
- Standard Fluid: Filtered Air
- Piston Rod Ends: Standard Male, Intermediate Male, Female, Specials to order
- Single or double piston rod ends available
- Mounting styles: 8 standard NFPA mounting styles available
- Standard Operating Temperature: -40F to + 200F
- Optional High Temperature Option: -10F to + 250F
Additional Options:
--- Bumpers at both head and cap end or either end
--- Adjustable Cushions at both head and cap end or either end
--- Full line of mounting accessories
--- Stop Tubing
--- Magnetic Piston Sensing
--- Port Relocation (other than standard)
Design Features:
--- Stainless Steel Construction for Superior Corrosion Resistance
--- Rated for Non Lube Service
| PRODUCT TYPE | Pneumatic Cylinder Tie Rod |
|---|---|
| BORE | 8.00 |
| PORTS | U |
| SEALS | FALSE |
| Configurator | YES |
| CAD Drawing Available | NO |
