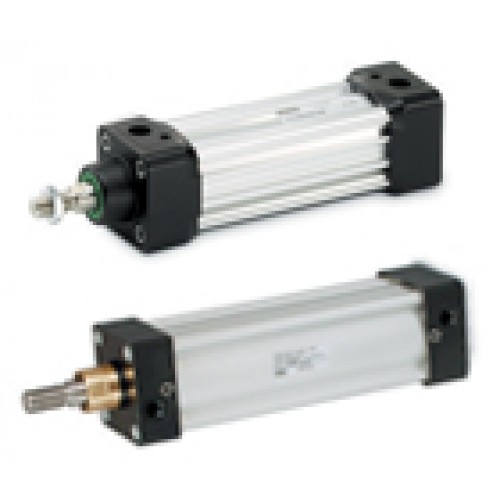

Parker NFPA AND TIE ROD PNEUMATIC CYLINDERS P1D ISO PNEUMATIC CYLINDER
Parker Pneumatic is pleased to release a new addition to the P1D family, the P1D-B Series. This new series
adds a competitive, low-cost option to the P1D cylinder family.
The P1D ISO Cylinder family offers anodized aluminum heads, caps, and profiled cylinder bodies for 32-125mm bores;
as well as anodized aluminum round bodies and steel tie rods for 160-200mm bores.
Cylinder Versions Available:
P1D-B - New!
- The cost effective solution for machine builders
- Cushions and magnetic piston are standard
P1D-S
- Numerous options and customized designs on request
- Cushions and magnetic piston are standard
- Available with rod lock
P1D-C
- Clean design for food and packaging
- Anodized aluminum and stainless steel throughout
P1D-G
- Removable rod gland for simplified maintenance
Standards: ISO 6431, ISO/DIS 15552, VDMA24562, AFNOR
Bore Sizes: 32, 40, 50, 63, 80, 100, 125, 160 and 200mm
Strokes: Available in any practical stroke length
Piston Rods: 1240mm, case-hardened and chrome plated steel (standard)
Piston Rod Ends: 2 standard (male and female), specials to order
Single or double piston rod ends available
Cylinder Mounting Styles: 16 standard
Operating Medium: pneumatic (air), 10 Bar (145 psi)
Standard Fluid: Dry, filtered air
Standard Operating Temperature: -20C to + 80C (-4F to + 176F)
Optional High Temperature Option: -10C to + 121C (+14F to + 250F)
Ports: BSPP standard, other porting styles (NPTF, BSPT, etc.) available
Additional Options:
--- Rod Locking Device (32-125mm bore sizes)
--- Fluorocarbon seals
--- Hydraulic service
--- Stainless steel piston rods (303, 316, 17-4 PH), fasteners and rod accessories
--- Metallic rod scraper
Design Features:
--- Corrosion-resistant anodized aluminum construction throughout
--- Magnetic piston ring (for external sensors) included as standard
--- Cushions both ends standard
--- Removable rod gland assembly for Removable Gland Version
--- Self-compensating rod wiper and seal
--- Rated for non-lube service
