Parker NFPA AND TIE ROD PNEUMATIC CYLINDERS C MEDIUM DUTY PNEUMATIC CYLINDER

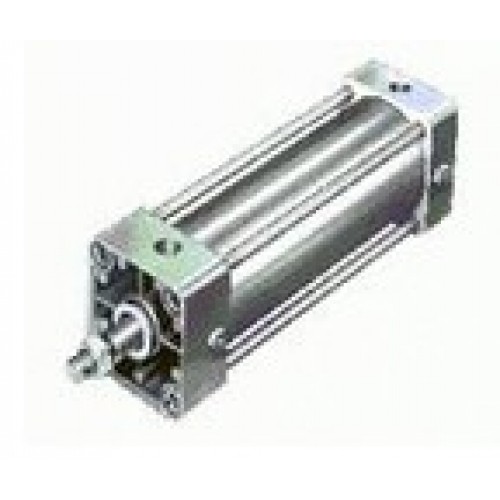

C Medium Duty Pneumatic Cylinder
- Prelubricated for LongerLife
- Medium Duty Industrial Air Cylinders
- 200 p.s.i. Maximum Operating Pressure
- Bore Sizes: 1 1/4", 1 3/4", 2 1/2", 3 5/8", and 4 1/2".
- Single and Double Rod Types
- Three Mounting Styles
- Strokes: Available to 20" as standard. For longer strokes, consult Parker, Cylinder Division.
- Operating Temperatures: for best seal life operating tempera-tures should not exceed 165F. Cylinder can be operated to 200F maximum with reduced life.
- Spring Returned Models: provided to order with spring at either end as specified. Call out end to which pressure will be applied. Cylinder will be longer than standard. Consult factory for addition to dimensions LB or LD.
| PRODUCT TYPE | Pneumatic Cylinder Non Tie Rod |
|---|---|
| BORE | 4.50 |
| PORTS | NPTF |
| SEALS | Buna only |
| Configurator | YES |
| CAD Drawing Available | NO |
