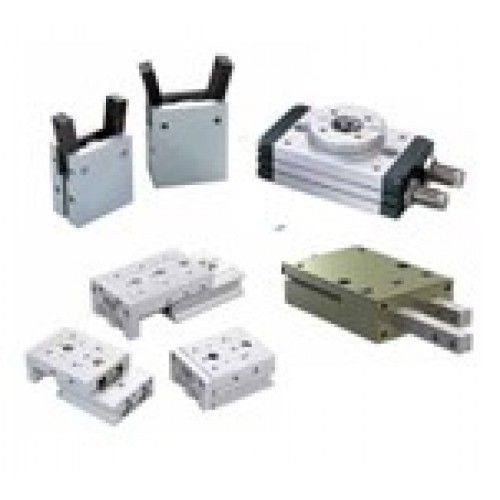

Parker cylinder GRIPPERS, TABLES, ESCAPEMENTS

Extensive Offering. Easy Integration. Single Source.


Parker Pneumatic Division is a single source supplier for all your automation needs. Selecting the right product for
your application is easy with Parker Hannifin's extensive offering of pneumatic grippers, slide tables, rotary tables,
and escapements. Integration into your automation system is fast and simple using a variety of online e-configurators
and CAD drawings.




Features and Benefits

Precision grippers   • Premium product for precision & durability   • Repeatability to + 0.00005mm   • Parallel 2 & 3 jaw   • Strokes to 73.5mm   • Grip forces to 35,000N   • Clean room   • Electric grippers Economy grippers   • Cost effective solution for machine builders   • Angular & Parallel   • 12mm-32mm bore
Slide tables   • Built in linear rail   • Bore size 6-25mm   • Available with stroke adjusters & shock absorbers
Rotary table   • Twin rack & pinion rotary with integrated table   • Rotation adjustment standard 0-190 degrees   • Available with shock absorbers   • Hollow shaft standard for wiring & piping
Escapements   • Most effective mechanism for separating parts     fed from conveyor   • Thrust force to 400 N   • Adjustable retract

FEED ESCAPEMENT - P5MD SERIES

FEATURES:

• Most effective mechanism for separating parts fed from a track or conveyor
• 7075-T6 aircraft quality aluminum body hard-coat anodized 60 RC with PTFE impregnation
• Adjustable retract stops
• Built-in sensor mounting slots
• Built-in sensor magnet for use with Hall Effect sensors
• Sealed design repels contaminants
• Slip fit dowel holes in body for precision applications
• Self lubricating dynamic seals (Nitrile only)
• Dynamic components are precision ground and hardened for wear resistance and long life
• Locking key ensures part separation and eliminates jams



SPECIFICATIONS:

• Pressure range: 3 to 7 bar (44 to 102 PSIG)
• Temperature range: Nitrile seals -35° C to 80° C (-30° F to 180° F)
• Filtration requirements: 40 micron or better
• Lubrication: not necessary, addition of lubrication will greatly increase service life
• Humidity: low moisture content (dry)

 LINEAR SLIDE TABLE - P5SS SERIES

FEATURES:

• Combination of dual bore cylinder and linear rail
• Magnetic piston standard
• Rubber bumper standard
• Available with stroke adjusters
• Available with shock adsorbers



SPECIFICATIONS:

• Pressure range: 1.5 to 7 bar (21.8 to 102 PSIG)
• Temperature range: -5° C to 60° C (23° F to 140° F)
• Filtration requirements: 40 micron or better
• Lubrication: not necessary, addition of lubrication will greatly increase service life
• Humidity: low moisture content (dry)

ROTARY TABLE - P5RS SERIES

FEATURES:

• Twin rack and pinion
• Adjustable between 0° and 190°
• Magnetic piston standard
• Stroke adjusters standard
• Available with shock adsorbers
• Easy mounting of work piece



SPECIFICATIONS:

• Pressure range: 1 to 9 bar (14.5 to 130.5 PSIG)
• Temperature range: -5° C to 60° C (23° F to 140° F)
• Filtration requirements: 40 micron or better
• Lubrication: not necessary, addition of lubrication will greatly increase service life
• Humidity: low moisture content (dry)
