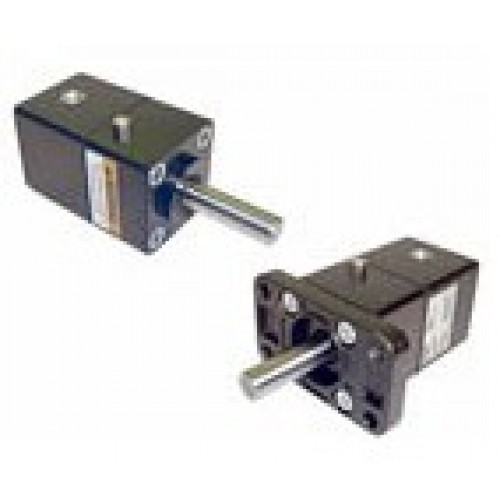

Parker cylinder accessories PRL ROD LOCK DEVICE

Construction: Rod Lock Device. Extruded, anodized aluminum body.

• Bore Sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm & 125mm
• Piston Rod Diameters: 12mm, 16mm, 20mm, 25mm & 32mm
• Operating Medium: Pneumatic, 10 Bar, min. 4 Bar + 10% to unlock.
• Standard Fluid: Filtered Air
• Minimum holding force corresponding of 6.8 bar applied to bore diameter.
• Mounting styles: 2 standard, also can be mounted on Series MP cylinders
• Standard Operating Temperature: -23C to + 74C

Additional Options:
--- Exhaust air can be piped away in contaminant free environment.
Design Features:
--- Locks in Both Directions
--- Rated for Non-Lube Service
