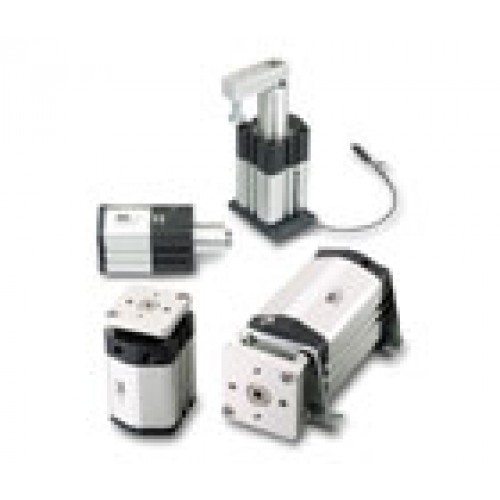

Parker COMPACT PNEUMATIC CYLINDERS P1M COMPACT PNEUMATIC CYLINDERS
- Construction: 3 Piece Bolted, Anodized Aluminum, Repairable Design
- Bore Sizes: 12,16,20,25,32,40,50,63,80, and 100mm
- Strokes: Available in stroke lengths to 500mm (bore size dependant)
- Single Acting and Double Acting Versions
- Piston Rod Diameters: 6 25mm
- Operating Medium: Pneumatic, 150-PSI (10 Bar)
- Standard Fluid: Filtered Air
- Piston Rod Ends: 4 standard, specials to order
- Single or double piston rod ends available
- Mounting styles: Basic, Double Rear Clevis, Single Rear Clevis, Foot Mount, Front Flange, Rear Flange
- Standard Operating Temperature: -10F to + 165F
- Optional High Temperature Option: +14F to + 250F
Additional Options:
--- NPT, BSPP, and BSPT Port Threads
--- Flexible Porting
--- Long Bearing
--- Bumpers
--- Stainless Steel Piston Rod
--- Magnetic Piston Sensing
Design Features:
--- Corrosion Resistant Aluminum Construction Throughout
--- Rated for Non Lube Service
--- Fully Recessed Switch Grooves
--- Wide variety of switches available
--- Can ordered in any practical stroke length without delivery penalty.
| PRODUCT TYPE | Pneumatic Cylinder Non Tie Rod |
|---|---|
| BORE | 100 |
| STROKE | 25 mm |
| SEALS | M = With Magnet, Bumpers, and Buna Seals |
| Configurator | YES |
| CAD Drawing Available | YES |
The P1M Swing Clamp Cylinder incorporates several innovative features including: 3-piece bolted construction, internal transfer tube, long bearing head option standard, bumpers standard, outboard rotating guide mechanism, and recessed sensor grooves. The combination of these features, in addition to maintaining the smallest dimensional envelope possible, make the P1M Swing Clamp pNEUMATIC Cylinder ideal for applications that require a compact design and superior clamping capability.
- Available in 32, 40, and 50mm bore Sizes
- P1M swing clamp option offers clamping capability to the extensive list of features associated with the P1M cylinder. This option is ideal for clamping applications that have limited space available.
-
PRODUCT TYPE Pneumatic Cylinder Non Tie Rod BORE 50 mm STROKE 50 mm. SEALS V - Magnetic Piston, Bumpers, Fluorocarbon Seals. Configurator YES CAD Drawing Available NO
- Available in 12, 16, 20, 25, 32, 40 and 50mm bore sizes
- Long stroke lengths
- Standard features include long bearing assembly, bumpers, flexible porting and flush sensor grooves
- Compact, 3-piece bolted design
- Custom or blank tooling plate configurations available
- Standard tooling plate bolt pattern matches Parker P5G Grippers without need for a transition plate
- P1M Tooling Plate Cylinders provide non-rotating capability with increased load carrying capacity
Actuator Products ¨C Compact Cylinder
LP/LPM Series
Bore
sizeACACBCDCEKKPart number
9/16 3/815/323/83/161-3/32#8-32 L073810008
3/4 3/815/323/83/161-3/32#10-32 L073810010
1-1/8 9/1615/323/83/161-9/325/16-24 L073810020
1-1/2 5/823/323/43/81-25/323/8-24 L073810024
2-2-1/2 21/3223/323/43/81-27/321/2-20 L073810032
3 21/32115/82-3/85/8-18 L073810040
4 21/32115/82-3/83/4-16 L073810048
ELMCBCDDDFLREPart number
113/327/3225/643/169/649/163/4 L073820012
1-3/425/3213/3249/643/811/6415/161-3/8 L073820024
2-1/219/161-1/645/817/641-1/42 L073820040
Use L073820012 on 9/16", 3/4" and 1-1/8" bore.
Use L073820024 on 1-1/2", 2" and 2-1/2" bore.
Use L073820040 on 3" and 4" bore.
Note: The Clevis Bracket is an accessory for the rod eye or the cap pivot eye and
cannot be mounted directly to the cylinder.
SBSTSUSWTDTLTSUSPart number
1/47/813/165/16.2521/23/81-1/2 L073840016
e
5/16115/163/8.3145/829/641-5/8 L073840020
3/81-1/41- 1/167/16.3773/435/641-7/8 L073840024
Use L073840016 on 1-1/8", 1-1/2" and 2" bore.
Use L073840020 on 2- 1/2" and 3" bore.
Use L073840024 on 4" bore.
Clevis Pin
CD HP LH LP Part number
HP Diameter thru
3/163/321 29/32 L073830012
3/8 5/321-5/81-15/32 L073830024
CD Diameter
5/8 5/322 1-27/32 L073830040
LP
LH
Service Kits
Standard piston, single rod cylinders Lipseal piston, single rod cylinders
Bore Rod Class 1 seals Class 5 seals Class 1 seals Class 5 seals
size dia. part number part number part number part number
9/16 1/4" SKS05LP251 SKS05LP255 KS05LPL251 KS05LPL255
3/4 5/16" SKS07LP311 SKS07LP315 KS07LPL311 KS07LPL315
1-1/8 1/2" SKS12LP501 SKS12LP505 KS12LPL501 KS12LPL505
1-1/2 5/8" SKS15LP621 SKS15LP625 KS15LPL621 KS15LPL625
2 3/4" SKS20LP751 SKS20LP755 KS20LPL751 KS20LPL755
2-1/2 3/4" SKS25LP751 SKS25LP755 KS25LPL751 KS25LPL755
3 7/8" SKS30LP871 SKS30LP875 KS30LPL871 KS30LPL875
4 1" SKS40LP101 SKS40LP105 KS40LPL101 KS40LPL105
