Numatics Specialty Cylinders and Nu Lock Units Tiny Titan Series Small Bore, Square Cylinder

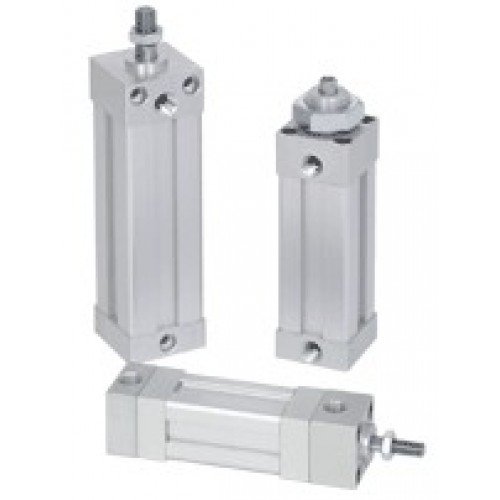

The Tiny Titan Series is a small bore, square end cap cylinder line that is designed to excel in applications where space limitations are of the utmost importance. Furthermore, a multitude of mounting styles and piston options make the Tiny Titan an extremely accommodating cylinder line.

Standard Specifications:

• Bore sizes include 3/4", 1", 1-1/8"
• Nominal pressure rating is 150 psi air
• Standard temperature -10°F to 165° F(-23° C to 74° C)
• All aluminum construction
• 1/8" ports
• Flexible port locations
• O Type piston - U-Cup
• P Type piston - heavy-duty (standard)
• Q Type piston - low profile

Features:

• The quad ring rod seal and PTFE wiper design provides proper sealing and long life.
• Tube end seals are compression type and reusable.
• The high strength profile design aluminum tube is hard coat anodized on the inner diameter. This provides a smooth corrosion free sealing surface and excellent abrasion resistance.
• Dovetail groove in the tube accommodates patented Numatics "World" switch.
• Head and cap are machined from (6061-T6) solid aluminum bar and anodized for corrosion resistance. A recess at the piston mating surface allows the air to work on a larger effective piston area for faster breakaway.

Rod Eye
Part No. A B C D E F H
P26-C01 0.250 0.750 0.438 0.250 0.250 0.500 1/4-28 0.280
P26-E01 0.375 0.875 0.438 0.375 0.375 0.750 5/16-24 0.380
P26-E02 0.375 0.875 0.438 0.250 0.375 0.750 5/16-24 0.380
P26-G01 0.375 0.875 0.438 0.375 0.375 0.750 3/8-24 0.310
P26-G02 0.375 0.875 0.438 0.250 0.375 0.750 3/8-24 0.310
* Parts are zinc plated steel
Rod Clevis
Part No. Z A1 A2 A3 A4 A5 A6
(Pivot Pin Included)
P500-301 0.250 0.812 0.500 0.250 0.250 0.500 1/4-28
P500-302 0.375 0.875 0.500 0.375 0.375 0.750 5/16-24
P500-303 0.250 0.875 0.500 0.375 0.375 0.750 5/16-24
P500-304 0.375 0.875 0.500 0.375 0.375 0.750 3/8-24
P500-305 0.250 0.875 0.500 0.375 0.375 0.750 3/8-24
* Parts are zinc plated steel
Clevis Bracket
(Pivot Pin Included)
Part No. I J K L M N O Q Z1
P500-001 1.187 0.500 0.250 0.250 0.250 1.125 0.750 0.750 #6
P500-002 1.250 0.563 0.375 0.375 0.375 1.375 1.000 0.875 #10
P500-003 1.250 0.563 0.375 0.250 0.375 1.375 1.000 0.875 #10
I
* Parts are zinc plated steel
Eye Bracket
X
Part No. R S T U V W X Y Z1
P30-C01 0.75 1.125 0.937 0.250 0.750 0.312 0.250 0.56 #6
V
P30-E01 1.000 1.375 0.937 0.375 0.750 0.312 0.375 0.56 #10
P30-E02 1.000 1.375 0.937 0.375 0.750 0.312 0.250 0.56 #10

Part No. A B C D E F G H
A500-600 1/4-28 7/8 1-1/4 1/4 5/8 5/16 3/16 3/4
A500-601 5/16-24 7/8 1-1/4 1/4 5/8 5/16 1/4 3/4
A500-602 3/8-24 7/8 1-1/4 1/4 5/8 5/16 5/16 3/4
A500-604 1/2-20 1-1/4 2 1/2 3/4 5/8 1/2 1
Part No. A B C
N90-1093 1/4-20 0.44 0.16
Pivot Pin
Hex Nuts
M190001 1/4-28 0.44 0.16
N90-1094 5/16-18 0.50 0.19
M18-004 5/16-24 0.50 0.19
N90-1062 3/8-16 0.56 0.22
M190002 3/8-24 0.56 0.22
N90-1095 1/2-13 0.75 0.31
M190004 1/2-20 0.75 0.31
Part No. A B
M190005 5/8-18 0.94 0.38
P500-401 0.984 0.250
M190006 3/4-16 1.12 0.42
P500-403 0.891 0.375
M190008 1-14 1.50 0.55

Tiny Titan Series World Switch Hall Effect Part Numbers
Electrical  Operating  Switching  Voltage  NEMA IP  Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
SH6-031 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-032 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-021 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-022 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C

Tiny Titan Series World Switch Reed Switch Part Numbers
Electrical  Operating  Switching  Voltage  NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
0.025 Amps Max.
SR6-002 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 3 Watts Max. 3.5 Volts NEMA 6 -25o to +75o C
0.001 Amps Min.
0.5 Amps Max.
SR6-004 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
0.005 Amps Min.
5-50 VAC 0.025 Amps Max.
SR6-022 M8 Connector AC/DC REED Normally Open 3 Watts Max. .5 Volts NEMA 6 -25o to +75o C
5-60 VDC 0.001 Amps Min.
5-50 VAC 0.5 Amps Max.
SR6-024 M8 Connector AC/DC REED Normally Open 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
5-60 VDC 0.005 Amps Min.
