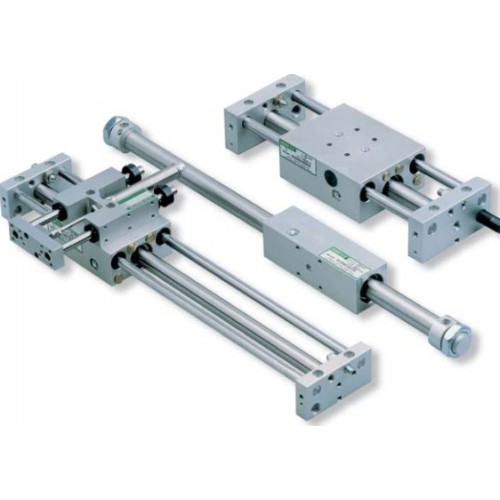

Numatics MCR Series Rodless Cylinder

The MCR Series cylinder consists of a piston and a carriage, which are coupled together using rare earth magnets. When the cylinder is pressurized from one end, the piston will travel the length of the tube, which in turn moves the carriage. Pressurizing the other side the carriage will travel back the length of the tube. They are available in various bore sizes and coupling strengths.

Standard Specifications:

Bore sizes include: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm
304 series stainless steel barrel
Operating pressure up to 7 bar, (100 psi.)
Ambient temperature range, -20ºC to + 60ºC (–4ºF to +140ºF)
Medium, filtered air, with or without lubrication, & low pressure hydraulic
Standard stroke lengths for non-guided (MC1, MC2) up to 2540mm(100") for guided (MC3, MC4, MC5) up to 1524mm (60")
Non-rotating linear travel (MC3, MC4, MC5)
Cushions are standard on the non-guided series for load deceleration
Operating speeds up to 1 m/sec (3.28ft./sec)

Features:

Guided series end plate design allows easy shock absorber installation. Several shock options available for optimum load deceleration.
Numate mounting features available (MC3, MC4, MC5)
Externally guided option (MC3, MC4, MC5)

Magnetically Coupled Rodless Cylinders
MC1 & MC2 Standard Carriage Series50% Space Savings Over Conventional CylindersTwo Magnet Coupling Strength Options6 Bore Sizes304 Stainless Steel BarrelCompressed Air or Low Pressure Hydraulic ServiceRare Earth Magnets for Greater Coupling Forces
MC3, MC4 & MC5 Externally Guided SeriesHigher Load CapacityNon-Rotating Linear Travel
TMNuMate Interface Capabilities for Multi Axis MotionsStroke Adjustment KitsPrecision Linear Ball BearingsPosition Sensing Switches

Magnetically Coupled Rodless Cylinders
Specifications
Bore 12 16 20 25 32 40
Series Standard and Guided Carriages
Working Pressure: Up to 7 Bar / 100 PSIG
Ambient Temperature Range: -20? to +60? C (-4? to +140? F)
Filtered Compressed Air
Medium: With or Without Lubrication and
Low Pressure Hydraulic*
Non-Guided up to 2540 mm (100 inches)
Standard Stroke Lengths:
Guided up to 1524 mm (60 inches)
Velocity: Up to 1 Meter / Second (3.28 Feet / Second)

Flange Mounting for MC1 and MC2 Cylinders
Diameter 12 & 16 20 & 25 32 40
155-112 155-113 155-138* 155-139*
*Foot and Flange Mounting
Nuts for Mounting Accessories***
Diameter 12 & 16 20 & 25 32 40
128-343 N90-1213 128-228 128-229

Floating Mounting Bracket Kit Part Numbers
Bore 12 16 20 25 32 40
N/A 239-1429 239-1430 239-1431 239-1432 239-1433

Part Number Diameter AA AB AC AD AE AF AG AH
239-1429 16 mm 2.48 (63.0) 1.96 (49.7) 1.92 (48.7) 1.02 (26.0) 0.22 (5.6) 0.13 (3.2) 1.58 (40.0) 1.02 (26.0)
239-1430 20 mm 2.80 (71.1) 2.20 (55.7) 2.15 (54.7) 1.26 (32.0) 0.22 (5.6) 0.13 (3.2) 1.65 (42.0) 1.26 (32.0)
239-1431 25 mm 3.24 (82.3) 2.69 (68.4) 2.47 (62.7) 1.41 (35.8) 0.26 (6.6) 0.19 (4.8) 1.97 (50.0) 1.41 (35.8)
239-1432 32 mm 3.61 (91.7) 3.06 (77.8) 2.84 (72.2) 1.89 (48.0) 0.26 (6.6) 0.19 (4.8) 2.36 (59.9) 1.89 (48.0)
239-1433 40 mm 4.46 (113.3) 3.79 (96.3) 3.54 (89.9) 2.21 (56.0) 0.35 (8.8) 0.25 (6.4) 2.76 (70.0) 1.97 (50.0)
Part Number Diameter AI AJ AK AL AM AN ZZ
239-1429 16 mm 0.21 (5.3) 2.80 (71.1) 0.33 (8.3) 1.14 (29.0) 1.58 (40.0) 1.85 (47.0) M5x.8
239-1430 20 mm 0.22 (5.6) 3.12 (79.3) 0.28 (7.0) 1.23 (31.2) 1.69 (43.0) 2.06 (52.2) M5x.8
239-1431 25 mm 0.26 (6.6) 3.52 (89.3) 0.32 (8.0) 1.49 (37.8) 1.97 (50.0) 2.47 (62.8) M6x1.0
239-1432 32 mm 0.26 (6.6) 3.89 (98.8) 0.32 (8.0) 1.68 (42.8) 2.17 (55.0) 2.85 (72.5) M6x1.0
239-1433 40 mm 0.38 (9.5) 4.70 (119.3) 0.39 (10.0) 1.85 (47.0) 2.76 (70.0) 3.56 (90.3) M8x1.25

Mid-Plate Dimensions for all Bore Sizes
Kit Part
Diameter AA* AB AC AD AE AF AG AH**
Number
SA-010012 12 mm 6.55 (166.3) 1.60 (40.6) 0.42 (10.6) 5.96 (151.2) 0.59 (15.0) 2.91 (73.9) 1.58 (40.1) 0.68 (17.3)
SA-010016 16 mm 7.14 (181.2) 1.60 (40.6) 0.42 (10.6) 6.55 (166.2) 0.59 (15.0) 3.31 (83.9) 1.65 (42.0) 0.68 (17.3)
SA-010020 20 mm 8.79 (223.1) 2.03 (51.6) 0.46 (11.6) 8.00 (203.1) 0.79 (19.9) 3.94 (99.9) 2.05 (51.9) 0.99 (25.1)
SA-010025 25 mm 9.58 (243.2) 2.03 (51.6) 0.46 (11.6) 8.79 (223.2) 0.79 (19.9) 4.49 (113.9) 2.25 (57.1) 0.99 (25.1)
SA-010032 32 mm 11.34 (288.1) 2.52 (64.1) 0.55 (14.0) 10.36 (263.1) 0.98 (25.0) 5.51 (139.9) 2.87 (75.5) 2.10 (53.4)
SA-010040 40 mm 12.36 (313.9) 2.52 (64.1) 0.55 (14.0) 11.37 (288.9) 0.98 (25.0) 6.54 (165.9) 3.07 (78.0) 2.10 (53.4)

Magnetic Switches
Switch Description Standard Part No. Quick Disconnect Part No.
Hall Effect-PNP (Sourcing) PNP-FL2-00-U PNP-QDS-M8-U
Hall Effect-NPN (Sinking) NPN-FL2-00-U NPN-QDS-M8-U
Reed Switch REED-FL2-00 REED-QDS-M8U
Switch Rail/Rod and Brackets
Rail for Linear Slide Hardware
RM001* PNP-FL2-00-U
Rod for Non-Guided Switch Bracket
1/4-304-SSR* 900-F00-000

MCR (Magnetically Coupled Non-Guided)
Sensor Standard Cord
Bore Bracket P/N
Quick Disconnect
Description Set
12mm N99-1181
Reed Switch REED-FL2-00 REED-QDS-M8U
16mm N99-1181
Hall PNP PNP-FL2-00-U PNP-QDS-M8-U
20mm N99-1181
Hall NPN NPN-FL2-00-U NPN-QDS-M8-U
25mm N99-1181
See page 16, 17, & 18 for sensor specifications
32mm N99-1181
40mm N99-1181
MCR (Magnetically Coupled Guided)
Sensor Standard Cord
Bore Bracket P/N
Quick Disconnect
Description Set
12mm RM001+N99-1185
Reed Switch REED-FL2-00 REED-QDS-M8U
16mm RM001+N99-1185
Hall PNP PNP-FL2-00-U PNP-QDS-M8-U
20mm RM001+N99-1185
Hall NPN NPN-FL2-00-U NPN-QDS-M8-U
25mm RM001+N99-1185
See page 16, 17, & 18 for sensor specifications
32mm RM001+N99-1185
Also available with 8mm Prox sensor see page 21
40mm RM001+N99-1185

Order Code Type Operating Voltage Current Rating Cable Material Protection Connector
PXCST Straight 5 m Cable (3 x 26 Gauge wire) 60 AC/75 DC 3 A PUR IP 68, III M8
PXC90 90!a 5 m Cable (3 x 26 Gauge wire 60 AC/75 DC 3 A PUR IP 68, III M8

P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
SH6-031 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-032 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-021 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-022 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C

Diameter Part Number Shock Stroke Effective Weight Accessories
Per Cycle E3 Per Hour E4
in (mm) in (kg) IN-LBS (Nm) IN-LBS (Nm) JAM NUTS SOFT PADS
12 mm NC-S0.2-1A 0.472 12 4.4 - 24 2 -- 11 194 22 309,760 35,200 NU-17012 NU-17011
16 mm NC-S0.2-1A 0.472 12 4.4 - 24 2 -- 11 194 22 309,760 35,200 NU-17012 NU-17011
20 mm NC-S0.25-3L 0.551 14 136 - 554 62 - 252 264 30 440,000 50,000 NU-21052 NU-21011
25 mm NC-S0.25-3L 0.551 14 136 - 554 62 - 252 264 30 440,000 50,000 NU-21052 NU-21011
32 mm NC-S0.5x19-2L 0.748 19 88 - 460 40 - 209 880 100 673,200 76,500 NU-21152 NU-21111
40 mm NC-S0.5x19-2L 0.748 19 88 - 460 40 - 209 880 100 673,200 76,500 NU-21152 NU-21111

NuMate Transition Plate for Linear Guided Cylinders Model Number Chart
12 Bore 16 Bore 20 Bore 25 Bore 32 Bore 40 Bore
AP-010012 AP-010016 AP-010020 AP-010025 AP-010032 AP-010040

Transition Plate Bolt P.N. Bolt Size
AP-010012 SPEC 127-413 M5 x 40
12mm SH031 LC056 LC075 B04 ! ! !
AP-010016 SPEC 127-353 M5 x 45
16mm SH031 LC056 LC075 B04 B06 ! !
AP-010020 SPEC 127-416 M5 x 55
20mm SH056 LC056 LC075 LC106 B04 B06 B08
AP-010025 SPEC 127-620 M5 x 60
25mm SH056 LC056 LC075 LC106 B04 B06 B08
AP-010032 SPEC 127-432 M6 x 70
32mm SH075 LC075 LC106 LC150 ! ! !
AP-010040 SPEC 127-432 M6 x 70
40mm SH075 LC075 LC106 LC150 ! ! !
Part Number Diameter AA AB AC AD AE AF AG AH
AP-010012 SPEC 12 mm 0.74 (18.8) 0.90 (22.7) 1.12 (28.3) 1.25 (31.8) 1.56 (39.6) 1.80 (45.6) 1.76 (44.7) 2.17 (55.0)
AP-010016 SPEC 16 mm 0.75 (18.9) 0.91 (23.0) 1.12 (28.3) 1.25 (31.8) 1.56 (39.6) 1.76 (44.7) 2.01 (50.9) 2.13 (54.1)
AP-010020 SPEC 20 mm 0.84 (21.3) 1.07 (27.3) 1.38 (35.1) 1.57 (39.9) 1.95 (49.4) 2.25 (57.0) 2.41 (61.3) 2.62 (66.4)
AP-010025 SPEC 25 mm 1.11 (28.3) 1.36 (34.5) 1.67 (42.4) 1.86 (47.2) 2.23 (56.7) 2.53 (64.3) 2.89 (73.3) 2.90 (73.7)
AP-010032 SPEC 32 mm 1.22 (31.0) 1.50 (38.1) 1.88 (47.6) 2.18 (55.4) 2.56 (64.9) 2.95 (74.9) 3.78 (96.0) 3.38 (85.8)
AP-010040 SPEC 40 mm 1.34 (33.9) 1.50 (38.1) 1.88 (47.6) 2.25 (57.2) 2.63 (66.7) 2.95 (74.9) 4.29 (108.9) 3.38 (85.8)
Part Number Diameter AI AJ AK AL AM AN AO AP
AP-010012 SPEC 12 mm 2.50 (63.5) 1.00 (25.4) 1.25 (31.8) 1.37 (34.9) 1.50 (38.1) 1.81 (46.0) 3.25 (82.5) 0.50 (12.7)
AP-010016 SPEC 16 mm 2.75 (69.9) 1.00 (25.4) 1.25 (31.8) 1.37 (34.9) 1.50 (38.1) 1.81 (46.0) 3.50 (88.9) 0.50 (12.7)
AP-010020 SPEC 20 mm 3.25 (82.5) 1.25 (31.8) 1.37 (34.9) 1.50 (38.1) 1.81 (46.0) 1.87 (47.6) 4.25 (108.0) 0.50 (12.7)
AP-010025 SPEC 25 mm 4.00 (101.6) 1.25 (31.8) 1.37 (34.9) 1.50 (38.1) 1.81 (46.0) 1.87 (47.6) 5.00 (127.0) 0.50 (12.7)
AP-010032 SPEC 32 mm 5.00 (127.0) 1.50 (38.1) 1.81 (46.0) 1.87 (47.6) 2.25 (57.2) 2.50 (63.5) 6.00 (152.4) 0.63 (16.0)
AP-010040 SPEC 40 mm 5.63 (143.0) 1.50 (38.1) 1.81 (46.0) 1.87 (47.6) 2.25 (57.2) 2.50 (63.5) 7.00 (177.8) 0.63 (16.0)
Part Number Diameter AQ BB CC DD EE FF GG HH
AP-010012 SPEC 12 mm 0.75 (19.0) M5x.8 6-32 UNC .094/.095 (2.3/2.4) 10-32 UNC .125/.126 (3.1/3.2) 1/4-20 UNC .187/.188 (4.7/4.8)
AP-010016 SPEC 16 mm 1.26 (32.0) M5x.8 6-32 UNC .094/.095 (2.3/2.4) 10-32 UNC .125/.126 (3.1/3.2) 1/4-20 UNC .187/.188 (4.7/4.8)
AP-010020 SPEC 20 mm 1.02 (26.0) M5x.8 10-32 UNC .125/.126 (3.1/3.2) 1/4-20 UNC .187/.188 (4.7/4.8) 5/16-18 UNC .187/.188 (4.7/4.8)
AP-010025 SPEC 25 mm 1.02 (26.0) M5x.8 10-32 UNC .125/.126 (3.1/3.2) 1/4-20 UNC .187/.188 (4.7/4.8) 5/16-18 UNC .187/.188 (4.7/4.8)
AP-010032 SPEC 32 mm 1.58 (40.0) M6x1.0 1/4-20 UNC .187/.188 (4.7/4.8)
5/16-18 UNC .187/.188 (4.7/4.8) 5/16-18 UNC .187/.188 (4.7/4.8)
AP-010040 SPEC 40 mm 1.97 (50.0) M6x1.0 1/4-20 UNC .187/.188 (4.7/4.8)
5/16-18 UNC .187/.188 (4.7/4.8) 5/16-18 UNC .187/.188 (4.7/4.8)

Port Adapters ¨C NPTF Male/BSP Femal
NPT G Thread
Part Number
10-32 M5 IN438-036-005
1/8 1/8 IN438-020-000
1/4 1/4 IN438-021-001
