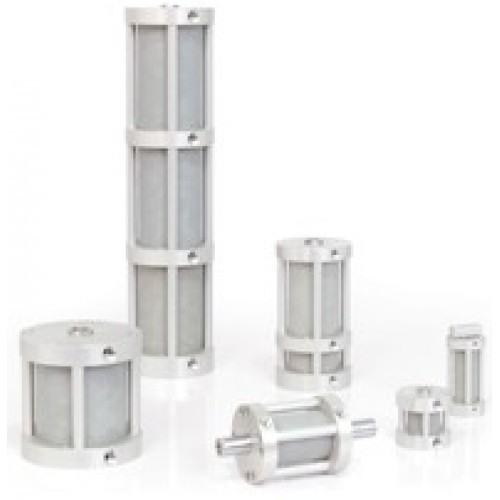

Numatics NB Series Compact Cylinder
The NB Series is a compact interchangeable air cylinder that is loaded with features and benefits.
Value Added Features:
Stainless steel tie bolts and aluminum spacers lock precision machined heads tightly around a unique, high strength, composite cylinder tube. The tube is extremely smooth, the self-lubricating interior surface insures highly reliable performance and extended seal life. Its high impact resistance reduces chances of cylinder failure due to dings or dents. Zero slip-stick avoids problems that metal cylinders encounter when they sit in a static condition for extended periods of time. Combined with hard chrome plated stainless steel piston rods and a unique, non-metallic rod bearing.
Exceptional Piston Rod Bearing:
The better the bearing, the more cycle life you can expect from your air cylinders. The NB Series cylinders incorporate a truly superior rod bearing material - Duralon®. Duralon® is a composite with a PTFE®/Dacron® fabric liner bonded to a supporting filament-wound, high strength, fiberglass and epoxy resin shell. Resistant to corrosion, moisture and temperature to 325°F, the bearing is reliable in any environment. It has an extremely high load bearing capacity, very low friction, and will not gall or score the piston rod.
rder Code Type Operating Voltage Current Rating Cable Material Protection Connector
PXCST Straight 5 m Cable (3 x 26 Gauge wire) 60 AC/75 DC 3 A PUR IP 68, III M8
PXC90 90!a 5 m Cable (3 x 26 Gauge wire 60 AC/75 DC 3 A PUR IP 68, III M8
NB Series World Switch Hall Effect Part Numbers
Electrical Operating Switching Voltage NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
SH6-031 DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75+ C
SH6-032 DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75+ C
SH6-021 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75+ C
SH6-022 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75+ C
