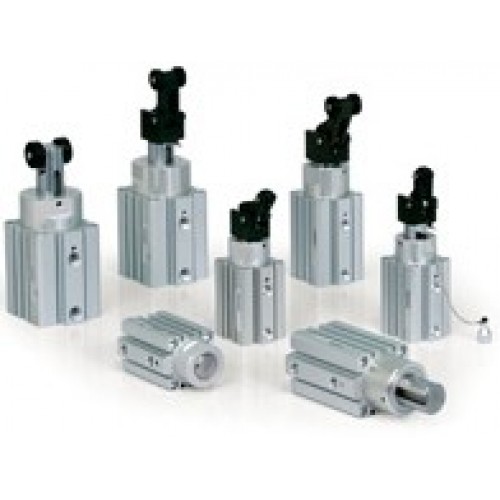

Numatics Compact Cylinders CST Series Stopper
The CST Series is designed to excel in both light and medium duty stopper applications. Numatics stopper cylinders enable objects to remain in control in conveyor systems. Pneumatic stopper cylinders are designed to stop objects at various conveyor processes such as machining, processing stations, etc.
The CST Series can be used in work holding fixture and conveyor system applications. These applications may include assembly belts, automatic warehouses with high-bay racking, and interlinked production plants. Our stopper cylinders are able to withstand application challenges that have been far too demanding for traditional air cylinders.
The CST Series includes all of the basic stopper cylinder types, i.e., shaft, roller and toggle-lever versions. The shaft version (both round and non-rotating) is solely a mechanical stop. The roller version design allows it to retract easily without frictional drag against the face of the work piece.
Regarding the toggle-lever version, impact forces are diverted via a toggle lever to the hydraulic shock absorber and dampened. Subsequently, this allows the stoppers to cope with extremely high forces, and the work piece is protected against damage during stopper operation.
Features:
- Magnetic piston is included as a bold standard feature.
- Rugged body is machined from aluminum extrusion and mounts rigidly to equipment using minimum space.
- A variety of styles are offered to meet different application requirements.
- The direction of rollers are adjustable for use in different applications.
- Shock absorbers are available as safety stops.
- Magnetic sensors can be mounted on cylinder surfaces when input signals are required for controllers.
Specifications:
- Double Acting
- Magnetic Piston
- Bore Size 32, 40 and 50 mm
- Operating Media Compressed air
- Max. Operating Pressure 145 psi (10 bar)
- Piston Speed 50 - 100 mm/sec
- Temperature Range -10C to + 70C (14F to 158F)
- Cushion Buna-N bumpers at both ends
- Stroke Tolerance +1.4/-0
Magnetic Sensors - Electrical Characteristics Part Numbers and Prices
Switching Switching Switching Switching Voltage Prewired 9 ft. Quick Connect
Sensor Type Function
Voltage Current Power Speed Drop Part No. Part No.
Reed Switch for
9C49-000-302
SPST 0.04 Amp 0.5 ms oper-
5-120V AC/ 2.5
PLC!ˉs w/LED
Normally max 0.005 4 Watts max. ate 0.1 ms 9C49-000-002 Requires 3 pin
DC 50/60 Hz Volts
(current limiting)
Open Amp min. release cordset
PNP 1.5|ìs ope- 9C49-000-331
Electronic LED 0.2 Amp 1.5
Normally 6-30 VDC 6 Watts max. ate 9C49-000-031 Requires 3 pin
and Sourcing max. Volts
Open 0.5|ìs releas cordset
NPN 1.5|ìs ope- 9C49-000-332
Electronic LED 0.2 Amp 1.5
Normally 6-30 VDC 6 Watts max. ate 9C49-000-032 Requires 3 pin
and Sinking max. Volts
Open 0.5|ìs releas cordset
Specifications and prices subject to change without notice or incurring obligation
CST Series Stopper Cylinder
Sensor Standard Cord
Quick Disconnect
Description Set
Reed Switch 9C49-000-002 Not available
Direct Mount
Hall PNP 9C49-000-031 9C49-000-331
No Bracket Required
Hall NPN Not available 9C49-000-332
See page 18 for sensor specifications
Order Code Type Operating Voltage Current Rating Cable Material Protection Connector
PXCST Straight 5 m Cable (3 x 26 Gauge wire) 60 AC/75 DC 3 A PUR IP 68, III M8
PXC90 90!a 5 m Cable (3 x 26 Gauge wire 60 AC/75 DC 3 A PUR IP 68, III M8
